Husqvarna LC 353V - Mower Deck & Cutting Deck 2

Name: Husqvarna LC 353V - Mower Deck & Cutting Deck 2
SKU: lc_353v_mower_deck_cutting_deck_2-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna LC 353V - Mower Deck & Cutting Deck 2

Description

Husqvarna LC 353V

Model Year -

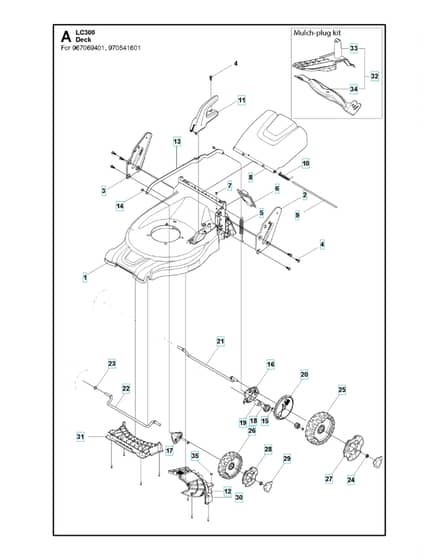

Mower Deck & Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV587 21 21-02 Available to backorder	Handle Support	£30.40 £25.33
3	HV587 21 23-02 Available to backorder	Handle Support	£30.40 £25.33
4	HV578 17 58-02 Available to backorder	Screw Itxpant	£4.26 £3.55
5	HV588 82 77-01 Available to backorder	Spring	£8.40 £7.00
7	HV579 31 74-01 Available to backorder	Strap	£1.04 £0.87
8	HV501 71 61-01 Available to backorder	Hatch	£44.00 £36.67
9	HV586 98 46-02 Available to backorder	Axle	£20.16 £16.80
11	HV589 69 29-01 Available to backorder	HANDLE	£37.12 £30.93
10	HV587 10 15-01 Available to backorder	Spring	£9.72 £8.10
12	HV502 43 53-01 Available to backorder	Screw Itxpant	£1.51 £1.26
13	HV588 82 78-01 Available to backorder	Rod	£34.94 £29.12
14	HV587 68 70-01 Available to backorder	Shaft	£7.12 £5.93
15	HV735 31 12-20 Available to backorder	E-Clip	£0.76 £0.63
16	HV587 07 25-01 Available to backorder	Link Arm	£15.54 £12.95
17	HV587 07 24-01 Available to backorder	Link Arm	£11.64 £9.70
18	HV501 86 10-01 Available to backorder	Bushing	£20.06 £16.72
19	HV579 68 28-02 Available to backorder	Tube	£8.40 £7.00
20	HV588 75 18-01 Available to backorder	Dust Cover	£10.82 £9.02
1	HV501 70 48-01 Available to backorder	Chassis	£189.96 £158.30
21	HV587 07 26-03 Available to backorder	Wheel Axle	£52.54 £43.78
22	HV587 07 26-04 Available to backorder	Wheel Axle	£48.94 £40.78
24	HV587 99 09-01 Available to backorder	Nut	£4.92 £4.10
25	HV588 74 96-01 Available to backorder	Wheel Assy	£33.24 £27.70
26	HV588 74 97-01 Available to backorder	Wheel Assy	£24.94 £20.78
27	HV588 75 20-01 Available to backorder	Hub Cap	£8.40 £7.00
28	HV588 75 21-01 Available to backorder	Hub Cap	£7.12 £5.93
29	HV584 15 94-01 Available to backorder	Nut Cap	£4.92 £4.10
30	HV501 71 55-01 Available to backorder	Belt Cover	£35.58 £29.65
31	HV501 91 03-01 Available to backorder	Skid Plate	£57.58 £47.98
33	HV582 36 27-01 Available to backorder	Mulch Plug	£50.46 £42.05
34	HV588 90 39-10 Available to backorder	Mower Blade	£35.12 £29.27
35	HV582 33 31-01 Available to backorder	Distance	£6.34 £5.28
