Husqvarna LC 353V - Engine

Name: Husqvarna LC 353V - Engine
SKU: lc_353v_engine-group
Price: 1.18 GBP
Availability: InStock

Description

Husqvarna LC 353V

Model Year -

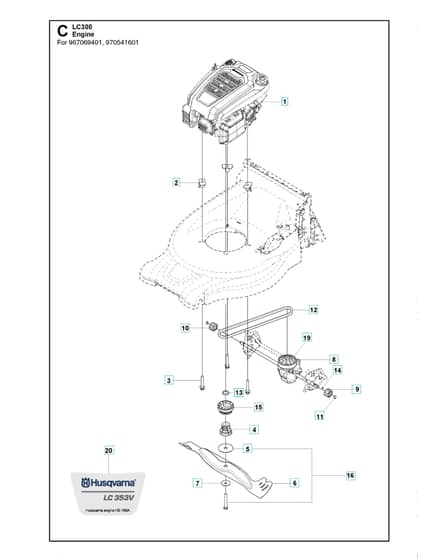

Engine - Parts Diagram

	Part No.	Details
2	HV578 29 51-01 Available to backorder	Sleeve	£7.12 £5.93
3	HV578 29 48-01 Available to backorder	Screw Ehhft	£2.26 £1.88
4	HV582 28 69-01 Available to backorder	Blade Support	£28.68 £23.90
5	HV503 25 94-01 In stock	Washer	£3.53 £2.94
6	HV579 79 72-10 Available to backorder	Blade	£35.12 £29.27
7	HV503 33 25-01 In stock	Spring	£5.68 £4.73
8	HV589 69 35-01 Available to backorder	Transmission Kitdelivered With 4Pcs Circlips	£165.62 £138.02
9	HV501 86 97-02 Available to backorder	Pinion	£13.66 £11.38
10	HV501 86 97-01 Available to backorder	Pinion	£13.66 £11.38
12	HV589 32 46-05 In stock	Belt	£23.59 £19.66
13	HV582 35 69-02 Available to backorder	Sleevefor 967069401	£6.46 £5.38
14	HV582 04 11-01 Available to backorder	Pin	£1.42 £1.18
15	HV582 17 89-01 Available to backorder	Pulley Assy	£35.08 £29.23
16	HV589 69 26-01 Available to backorder	Bolt	£9.52 £7.93
