Husqvarna LC 353IV - Mower Deck & Cutting Deck

Name: Husqvarna LC 353IV - Mower Deck & Cutting Deck
SKU: lc_353iv_2020_01_mower_deck_cutting_deck-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna LC 353IV - Mower Deck & Cutting Deck

Description

Husqvarna LC 353IV

Model Year - 2020-01

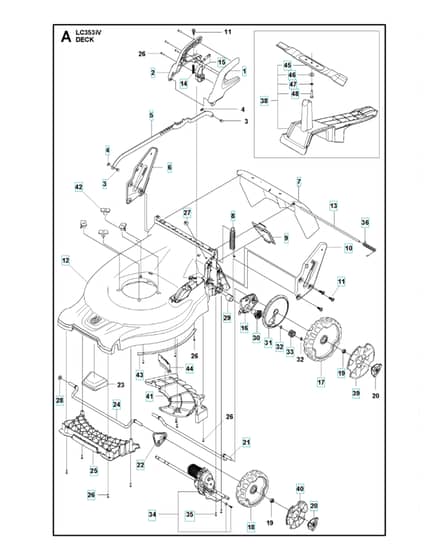

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV587 20 37-01 Available to backorder	Cover Halfhusqvarna. Suspension - Left - Height Adjustment	£14.88 £12.40
2	HV587 20 38-01 Available to backorder	Cover Halfhusqvarna. Suspension - Right - Height Adjustment	£18.76 £15.63
3	HV587 68 70-01 Available to backorder	Shaftsuspension	£7.12 £5.93
4	HV735 31 12-20 Available to backorder	E-Clip7X0.9 St Pp.Shafts	£0.76 £0.63
5	HV588 82 78-01 Available to backorder	Rodsuspension 190/230	£34.94 £29.12
6	HV587 21 23-02 Available to backorder	Handle Supportright	£30.40 £25.33
8	HV588 82 77-01 Available to backorder	Spring53 Cm.Balance - Suspension	£8.40 £7.00
9	HV587 09 54-02 Available to backorder	Coverservice Door	£9.06 £7.55
10	HV587 21 21-02 Available to backorder	Handle Supportleft	£30.40 £25.33
11	HV578 17 58-02 Available to backorder	Screw Itxpant8X24. Tbo. For Thermoplastics	£4.26 £3.55
12	HV501 70 48-01 Available to backorder	Chassishusqvarna. 53 Cm	£189.96 £158.30
13	HV586 98 46-02 Available to backorder	Axlehatch Rear Door	£20.16 £16.80
14	HV589 59 76-01 Available to backorder	Springha Button	£3.88 £3.23
15	HV587 69 74-01 Available to backorder	Buttonassy - Suspension - Height Adjustment	£11.64 £9.70
16	HV587 07 25-01 Available to backorder	Link Armrear Idler 210	£15.54 £12.95
17	HV588 74 96-01 Available to backorder	Wheel Assyhusqvarna. With Sleeve. 230. Drive	£33.24 £27.70
18	HV588 74 97-01 Available to backorder	Wheel Assyhusqvarna. With Sleeve. 190. Idler	£24.94 £20.78
19	HV587 99 09-01 Available to backorder	Nutlock. M12X10	£4.92 £4.10
20	HV584 15 94-01 Available to backorder	Nut Capnut Cap	£4.92 £4.10
21	HV587 07 26-03 Available to backorder	Wheel Axlerear 53 Cm.Suspension	£52.54 £43.78
22	HV587 07 24-01 Available to backorder	Link Armfront Idler 170	£11.64 £9.70
24	HV587 07 26-04 Available to backorder	Wheel Axlefront 47 Cm. Suspension	£48.94 £40.78
25	HV501 91 03-01 Available to backorder	Skid Platehusqvarna. Front	£57.58 £47.98
27	HV579 31 74-01 Available to backorder	Strapfir Tree 170X5	£1.04 £0.87
29	HV579 68 28-02 Available to backorder	Tuberubber	£8.40 £7.00
30	HV501 86 10-01 Available to backorder	Bushingassy	£20.06 £16.72
31	HV589 63 98-01 Available to backorder	Dust Coverdust Cover. 230	£11.34 £9.45
33	HV544 34 23-01 Available to backorder	Pinionfull Width. Pm. 11 T. 21.25mm Root Diam	£10.80 £9.00
35	HV502 43 53-01 Available to backorder	Screw Itxpantt50X16 Zn/Fe (A009)	£1.51 £1.26
36	HV587 10 15-01 Available to backorder	Springhatch	£9.72 £8.10
38	HV595 00 11-01 Available to backorder	Mulch Kitmulch Plug And Combi Blade Kit	£67.14 £55.95
39	HV588 75 20-01 Available to backorder	Hub Cap230 Husqvarna	£8.40 £7.00
40	HV588 75 21-01 Available to backorder	Hub Cap190 Husqvarna	£7.12 £5.93
41	HV501 71 55-01 Available to backorder	Belt Coverbelt Cover 53 Cm	£35.58 £29.65
42	HV578 29 51-01 Available to backorder	Sleevefor Engine Screws. Plastic Chassis	£7.12 £5.93
45	HV595 00 72-10 Available to backorder	Blade	£35.12 £29.27
46	HV734 11 64-41 Available to backorder	Washersrkb 8.4/25X2	£3.28 £2.73
47	HV579 68 42-01 Available to backorder	Spring Washer	£2.58 £2.15
48	HV725 24 55-71 Available to backorder	Screw Ehhmm8X30 8.8 Zpb	£3.30 £2.75
