Husqvarna LC 347VLI - Mower Deck & Cutting Deck

Description

Husqvarna LC 347VLI

Model Year -

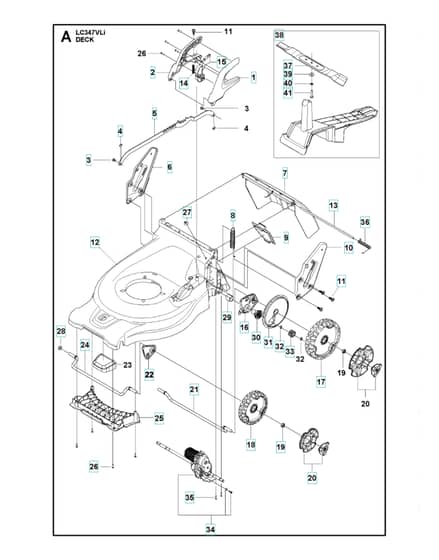

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
1	HV587 20 37-01 Available to backorder	Cover Halfhusqvarna.Suspension - Left - Height Adjustment	£14.74 £12.28
2	HV587 20 38-01 Available to backorder	Cover Halfhusqvarna.Suspension - Right - Height Adjustment	£18.60 £15.50
3	HV587 68 70-01 Available to backorder	Shaftsuspension	£7.06 £5.88
4	HV735 31 12-20 Available to backorder	E-Clip7X0.9 St Pp.Shafts	£0.78 £0.65
5	HV587 16 08-01 Available to backorder	Rodsuspension 170/210	£27.55 £22.96
6	HV587 21 23-02 Available to backorder	Handle Supportright	£30.14 £25.12
7	HV587 10 14-03 Available to backorder	Hatchhva.Rear Discharge	£42.86 £35.72
8	HV587 67 44-01 Available to backorder	Spring47 Cm.Balance - Suspension	£14.20 £11.83
9	HV587 09 54-02 In stock	Coverservice Door	£7.57 £6.31
10	HV587 21 21-02 Available to backorder	Handle Supportleft	£30.14 £25.12
11	HV578 17 58-02 Available to backorder	Screw Itxpant8X24. Tbo.For Thermoplastics	£4.22 £3.52
12	HV587 15 10-05 Available to backorder	Chassishusqvarna.47 Cm	£174.36 £145.30
13	HV586 98 46-01 Available to backorder	Axle	£20.66 £17.22
14	HV589 59 76-01 Available to backorder	Springha Button	£3.84 £3.20
15	HV587 69 74-01 Available to backorder	Buttonassy - Suspension - Height Adjustment	£11.54 £9.62
16	HV587 07 25-01 Available to backorder	Link Armrear Idler 210	£15.38 £12.82
17	HV582 30 57-01 Available to backorder	Wheel Assyhusqvarna. With Sleeve.210. Idle. Medium	£27.35 £22.79
18	HV587 63 15-01 Available to backorder	Wheel Assyhusqvarna.170. Idler	£23.21 £19.34
19	HV587 99 09-01 Available to backorder	Nutlock. M12X10	£4.86 £4.05
20	HV584 15 93-01 Available to backorder	Hub Capwheel ¯210mm	£7.70 £6.42
21	HV587 07 26-01 Available to backorder	Wheel Axlerear 47 Cm.Suspension	£49.91 £41.59
22	HV587 07 24-01 Available to backorder	Link Armfront Idler 170	£11.54 £9.62
24	HV587 07 26-02 Available to backorder	Wheel Axlefront 47 Cm.Suspension	£46.34 £38.62
25	HV588 20 27-01 Available to backorder	Skid Platehusqvarna.Front	£51.54 £42.95
27	HV579 31 74-01 Available to backorder	Strapfir Tree 170X5	£1.02 £0.85
29	HV579 68 28-02 Available to backorder	Tuberubber	£8.48 £7.07
30	HV501 86 10-01 Available to backorder	Bushingassy	£20.22 £16.85
31	HV587 20 40-02 Available to backorder	Dust Coverdrive 210	£10.40 £8.67
33	HV544 34 23-01 Available to backorder	Pinionfull Width.Pm. 11 T. 21.25mm Root Diam	£10.57 £8.81
35	HV502 43 53-01 Available to backorder	Screw Itxpantt50X16 Zn/Fe (A009)	£1.44 £1.20
36	HV587 10 15-01 Available to backorder	Springhatch	£9.62 £8.02
37	HV590 70 10-10 Available to backorder	Blade47Cm	£34.51 £28.76
39	HV734 11 64-41 In stock	Washer	£3.25 £2.71
40	HV579 68 42-01 Available to backorder	Spring Washer	£2.56 £2.13
41	HV725 24 55-71 Available to backorder	Screw Ehhmm8X30 8.8 Zbp	£3.41 £2.84
