Husqvarna LC 347V - 970541301 - Engine

Description

Husqvarna LC 347V - 970541301 - Engine - Parts Diagram

	Part No.	Details
1	HV531 45 09-01 Available to backorder	Engine (For 970541301)	£317.96 £264.97
2	HV578 29 51-01 Available to backorder	Sleeve	£7.12 £5.93
3	HV578 29 48-01 Available to backorder	Screw Ehhft	£2.26 £1.88
4	HV501 88 28-02 Available to backorder	Blade Support	£25.18 £20.98
5	HV503 25 94-01 In stock	Washer	£3.53 £2.94
6	HV588 27 55-10 In stock	Blade	£32.69 £27.24
7	HV503 33 25-01 In stock	Spring	£5.68 £4.73
8	HV589 69 33-01 Available to backorder	Transmission Kit (Delivered with 4pcs circlips)	£152.68 £127.23
9	HV501 86 97-02 Available to backorder	Pinion	£13.66 £11.38
10	HV501 86 97-01 Available to backorder	Pinion	£13.66 £11.38
11	HV735 31 14-00 Available to backorder	Circlip	£0.77 £0.64
13	HV582 35 69-02 Available to backorder	Sleeve (For 967068901)	£6.46 £5.38
13	HV582 35 69-03 Available to backorder	Sleeve (For 970541301)	£8.86 £7.38
14	HV582 04 11-01 Available to backorder	Pin	£1.42 £1.18
15	HV582 17 89-01 Available to backorder	Pulley Assy	£35.08 £29.23
16	HV589 69 22-01 Available to backorder	Bolt (Kit with washer)	£9.06 £7.55
17	HV593 97 32-01 Available to backorder	Bracket	£9.65 £8.04
18	HV502 43 53-01 Available to backorder	Screw Itxpant	£1.51 £1.26

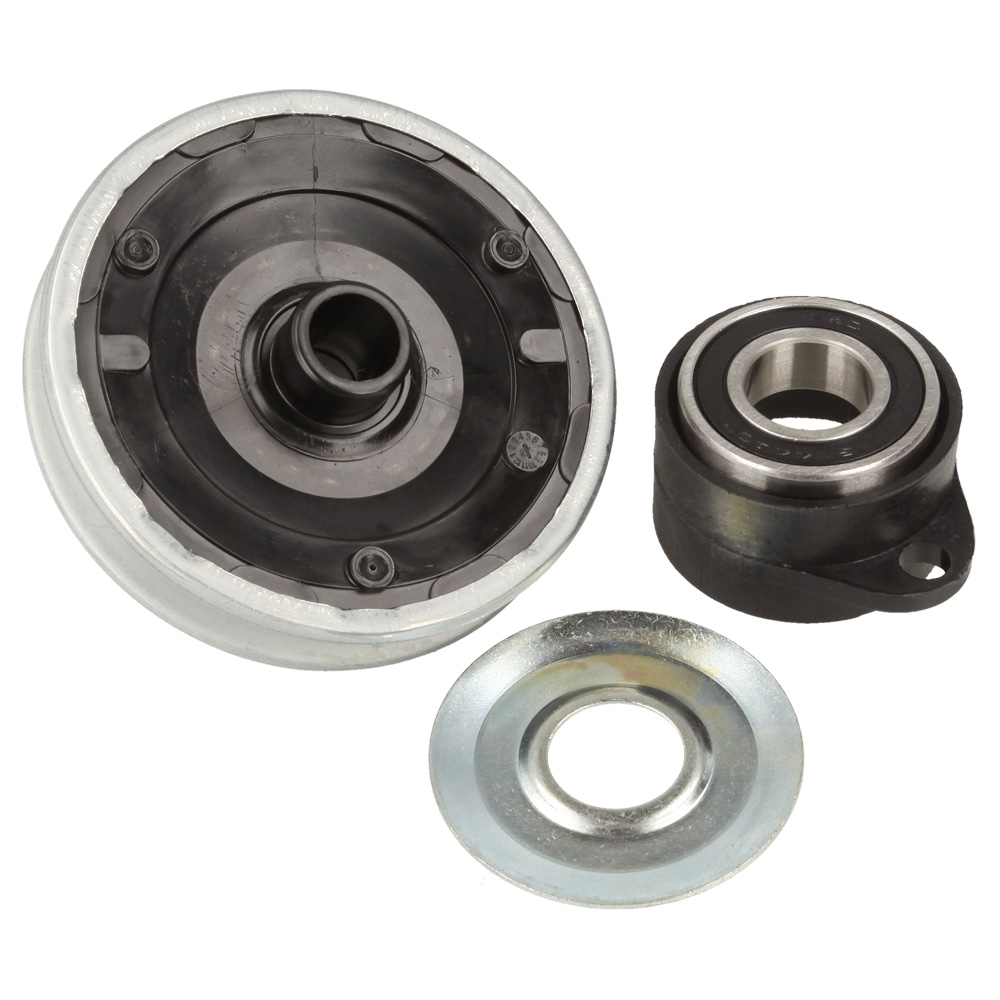

19	HV597 73 08-01 Available to backorder	Variator	£66.37 £55.31
20	HV531 24 08-05 Available to backorder	Decal	£3.50 £2.92
21	HV504 46 05-01 Available to backorder	Woodruf Key	£5.56 £4.63
