Husqvarna LC 253S - 970541501 - Engine

Name: Husqvarna LC 253S - 970541501 - Engine
SKU: LC_253S_970541501_CG_704722_HighResPng-group
Price: 0.65 GBP
Availability: InStock

Part No. LC_253S_970541501_CG_704722_HighResPng-group

Description

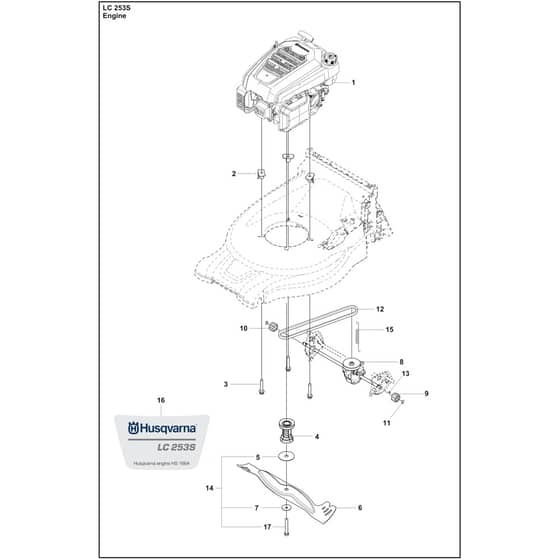

Husqvarna LC 253S - 970541501 - Engine - Parts Diagram

	Part No.	Details
1	HV531 45 09-01 Available to backorder	Engine (For 970541501)	£295.08 £245.90
2	HV578 29 51-01 Available to backorder	Sleeve	£7.06 £5.88
3	HV578 29 48-01 Available to backorder	Screw Ehhft	£2.35 £1.96
4	HV501 88 51-01 Available to backorder	Blade Support	£37.12 £30.93
5	HV503 25 94-01 In stock	Washer	£3.50 £2.92
6	HV579 79 72-10 Available to backorder	Blade	£35.42 £29.52
7	HV503 33 25-01 In stock	Spring	£5.63 £4.69
8	HV589 69 30-01 Available to backorder	Transmission Kit (Delivered with 4pcs circlips)	£113.52 £94.60
9	HV501 86 97-02 Available to backorder	Pinion	£13.55 £11.29
10	HV501 86 97-01 Available to backorder	Pinion	£13.55 £11.29
11	HV735 31 14-00 Available to backorder	Circlip	£0.78 £0.65
12	HV589 32 46-01 Available to backorder	Drive Belt	£24.41 £20.34
13	HV582 04 11-01 Available to backorder	Pin	£1.40 £1.17
14	HV589 69 26-01 Available to backorder	Bolt (Kit with washer)	£9.62 £8.02
15	HV582 36 20-01 Available to backorder	Spring	£8.48 £7.07
16	HV531 24 08-07 Available to backorder	Decal	£3.49 £2.91
17	HV504 45 64-03 Available to backorder	Screw Ehhi	£7.70 £6.42
