Husqvarna LC 247I - Handle 2

Name: Husqvarna LC 247I - Handle 2
SKU: lc_247i_handle_2-group
Price: 0.64 GBP
Availability: InStock

Description

Husqvarna LC 247I

Model Year -

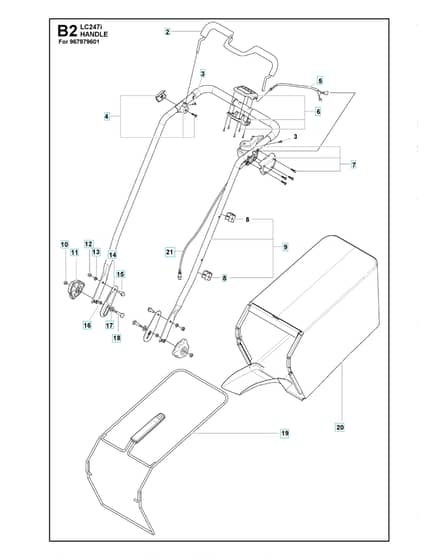

Handle 2 - Parts Diagram

	Part No.	Details
3	HV593 19 87-01 Available to backorder	Drive Screwm4 Bail Screw	£0.77 £0.64
4	HV593 11 87-01 Available to backorder	Support Assybail Support Assembly	£27.18 £22.65
5	HV593 19 86-01 Available to backorder	Extension Cablecontrol Panel Assy Cable	£11.00 £9.17
7	HV593 11 79-01 Available to backorder	Switchbox Assypush	£38.18 £31.82
9	HV593 11 97-02 Available to backorder	Handle Assyupper	£124.22 £103.52
10	HV731 23 18-01 Available to backorder	Hexagon Nutm8 8 Zpb.Iso 4032	£3.24 £2.70
11	HV587 23 72-01 Available to backorder	Knobhandle	£13.58 £11.32
12	HV732 21 18-01 Available to backorder	Lock Nutm8-8	£2.40 £2.00
13	HV734 18 20-51 Available to backorder	Washer8X16X1.5 St Zpb.Type Nb	£2.34 £1.95
14	HV587 78 04-01 Available to backorder	Washerwasher Handle/Handlesupport	£5.44 £4.53
15	HV506 57 01-04 Available to backorder	Screw Ehhfmm8X20 8.8 Zpb.Ehhfm	£5.04 £4.20
16	HV731 43 18-01 Available to backorder	Hexagon Thin Nutm8 St 04 Zpb.Iso 4035	£1.96 £1.63
17	HV588 15 74-01 Available to backorder	Washernylon Washer	£2.34 £1.95
18	HV588 15 73-02 Available to backorder	Boltesloc.Carriage Bolt M8	£2.34 £1.95
19	HV587 18 20-01 Available to backorder	Framegrassbag	£45.94 £38.28
20	HV587 29 23-01 Available to backorder	Grassbaghusqvarna. Fabric Assembly	£67.28 £56.07
