Husqvarna LC 247 - Engine

Part No. lc_247_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna LC 247 - Engine

Husqvarna LC 247 - Engine

Description

Husqvarna LC 247

Model Year -

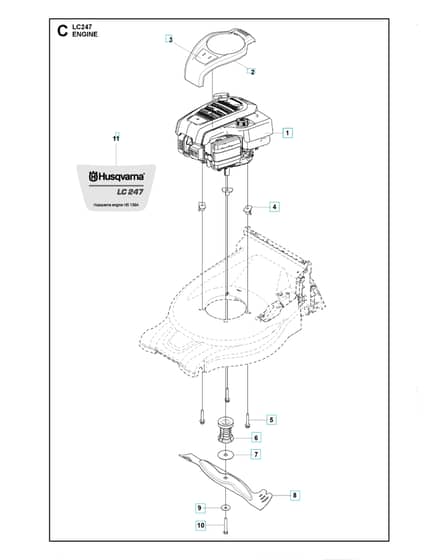

Engine - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV588 87 87-01 Available to backorder	Shroudfor 967345201		£26.92 £22.43
	3		HV588 88 85-01 Available to backorder	Decalfor 967345201		£2.69 £2.24
	4		HV578 29 51-01 Available to backorder	Sleeve		£7.06 £5.88
	5		HV578 29 48-01 Available to backorder	Screw Ehhft		£2.35 £1.96
	6		HV588 64 57-01 Available to backorder	Blade Support		£37.67 £31.39
	7		HV503 25 94-01 In stock	Washer		£3.50 £2.92
	8		HV588 27 55-10 In stock	Blade		£32.17 £26.81
	9		HV503 33 25-01 In stock	Spring		£5.63 £4.69
	10		HV504 45 64-03 Available to backorder	Screw Ehhi		£7.70 £6.42

Description

Husqvarna LC 247

Model Year -

Engine - Parts Diagram
