Husqvarna LC 153V - Drive

Part No. lc_153v_2015_10_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna LC 153V - Drive

Husqvarna LC 153V - Drive

Description

Husqvarna LC 153V

Model Year - 2015-10

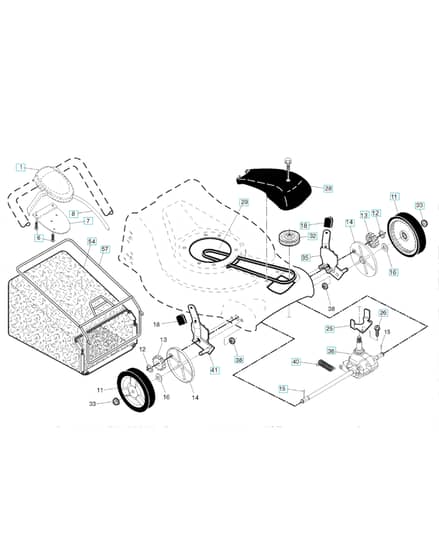

Drive - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV532 42 56-61 Available to backorder	Drive Control		£88.56 £73.80
	6		HV532 18 16-98 Available to backorder	Screw		£1.79 £1.49
	7		HV532 40 07-23 Available to backorder	Bracket		£17.94 £14.95
	8		HV532 40 62-59 Available to backorder	Cable Assy		£57.41 £47.84
	11		HV532 40 12-74 In stock	Wheel		£21.48 £17.90
	12		HV812 00 00-58 Available to backorder	E-Clip		£0.77 £0.64
	13		HV532 40 38-49 Available to backorder	Pinion		£9.98 £8.32
	14		HV581 84 04-01 Available to backorder	Dust Cover		£9.62 £8.02
	15		HV532 40 48-45 Available to backorder	Pawl. Drive		£6.52 £5.43
	16		HV532 06 77-25 Available to backorder	Washer		£8.98 £7.48
	18		HV532 70 10-37 Available to backorder	Knob		£5.02 £4.18
	25		HV532 43 17-11 Available to backorder	Bracket		£10.72 £8.93
	26		HV532 16 34-09 Available to backorder	Screw		£1.56 £1.30
	32		HV586 98 97-01 Available to backorder	Pulley		£12.12 £10.10
	33		HV532 40 91-48 Available to backorder	Nut		£3.60 £3.00
	35		HV532 43 81-51 Available to backorder	Adjusterlh		£28.84 £24.03
	40		HV532 40 65-58 Available to backorder	Spring		£3.74 £3.12
	54		HV580 95 34-06 Available to backorder	Grass Bag Assy		£69.24 £57.70

Description

Husqvarna LC 153V

Model Year - 2015-10

Drive - Parts Diagram
