Husqvarna LC 140S

Model Year -

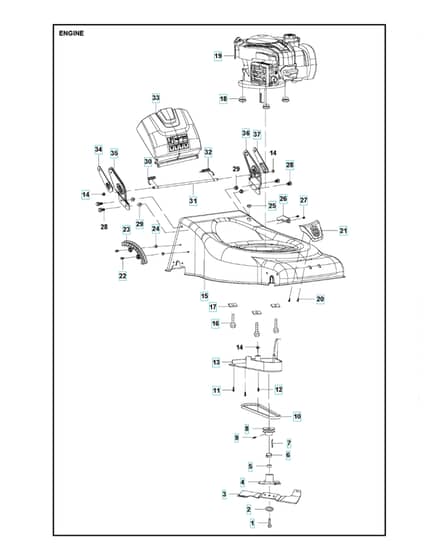

Engine - Parts Diagram

	Part No.	Details
1	HV587 91 38-01 Available to backorder	Locking Bolt	£7.06 £5.88
2	HV587 91 07-01 Available to backorder	Washer	£2.56 £2.13
3	HV587 38 63-10 Available to backorder	Blade	£24.64 £20.53
4	HV587 91 12-01 Available to backorder	Blade Support	£18.60 £15.50
5	HV587 91 54-01 Available to backorder	Bush	£8.34 £6.95
6	HV587 91 02-01 Available to backorder	Bushing	£5.63 £4.69
7	HV587 91 53-01 Available to backorder	Flat Pin	£1.79 £1.49
8	HV587 91 20-01 Available to backorder	Pulley	£44.90 £37.42
9	HV587 91 28-01 Available to backorder	Screw	£1.56 £1.30
10	HV587 90 96-01 Available to backorder	Belt	£22.80 £19.00
11	HV587 91 22-01 Available to backorder	Screw	£1.56 £1.30
12	HV587 91 26-01 Available to backorder	Screw	£2.05 £1.71
13	HV587 90 98-01 Available to backorder	Cover	£12.82 £10.68
14	HV587 91 34-01 Available to backorder	Lock Nut	£2.05 £1.71
15	HV587 90 88-01 Available to backorder	Plate	£148.68 £123.90
16	HV587 91 37-01 Available to backorder	Bolt	£1.56 £1.30
17	HV587 91 11-01 Available to backorder	Gasket	£8.17 £6.81
18	HV587 91 35-01 Available to backorder	Locking Bolt	£2.60 £2.17
19	HV587 91 61-01 Available to backorder	Engine	£276.00 £230.00
20	HV587 91 24-01 Available to backorder	Screw	£1.56 £1.30
21	HV587 58 49-01 Available to backorder	Front Cover	£5.78 £4.82
22	HV579 68 51-01 Available to backorder	Bolt	£2.05 £1.71
23	HV587 90 99-01 Available to backorder	Segment	£6.40 £5.33
24	HV579 68 52-01 Available to backorder	Nut	£1.79 £1.49
25	HV587 91 00-01 Available to backorder	Cover	£3.59 £2.99
26	HV587 91 13-01 Available to backorder	Guide Plate	£6.40 £5.33
27	HV587 91 41-01 Available to backorder	Bolt	£2.56 £2.13
28	HV587 91 39-01 Available to backorder	Bolt	£1.56 £1.30
29	HV579 68 79-01 Available to backorder	Nut	£3.22 £2.68
30	HV587 91 51-01 Available to backorder	Spring	£4.74 £3.95
31	HV502 23 10-01 Available to backorder	Rod	£17.83 £14.86
32	HV587 91 50-01 Available to backorder	Bracket	£5.51 £4.59
33	HV587 58 59-01 Available to backorder	Flap	£35.88 £29.90
34	HV501 05 56-01 Available to backorder	Plate	£7.06 £5.88
35	HV501 05 44-01 Available to backorder	Bracket	£22.44 £18.70
36	HV501 05 47-01 Available to backorder	Bracket	£22.44 £18.70
37	HV501 05 55-01 Available to backorder	Plate	£7.06 £5.88
