Husqvarna LB 448iV - 970712501 - Mower Deck / Cutting Deck

Description

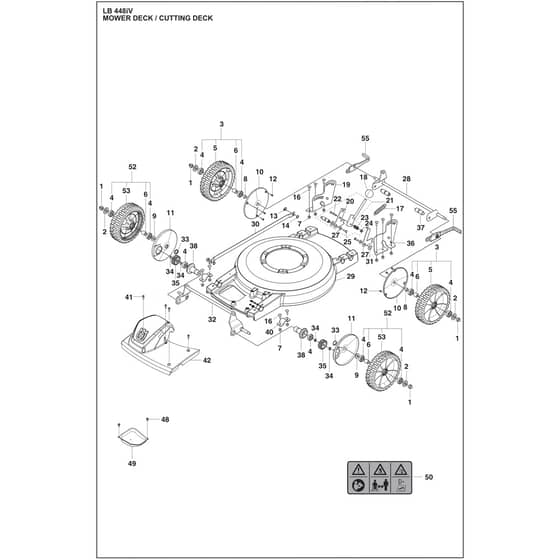

Husqvarna LB 448iV - 970712501 - Mower Deck / Cutting Deck - Parts Diagram

	Part No.	Details
1	HV295 67 71-05 Available to backorder	Nut	£4.36 £3.63
2	HV295 66 67-02 Available to backorder	Washer	£5.12 £4.27
3	HV295 66 71-04 Available to backorder	Wheel (Rear)	£61.44 £51.20
4	HV503 24 29-01 Available to backorder	Ball Bearing	£8.03 £6.69
5	HV295 68 87-04 Available to backorder	Wheel Assy (Rear)	£30.62 £25.52
6	HV295 66 72-01 Available to backorder	Spacer	£8.98 £7.48
7	HV576 64 57-03 Available to backorder	Nut	£2.30 £1.92
8	HV295 66 62-02 Available to backorder	Spacer	£4.12 £3.43
9	HV295 67 52-01 Available to backorder	Spacer Washer	£4.12 £3.43
10	HV295 66 73-01 Available to backorder	Shield	£7.84 £6.53

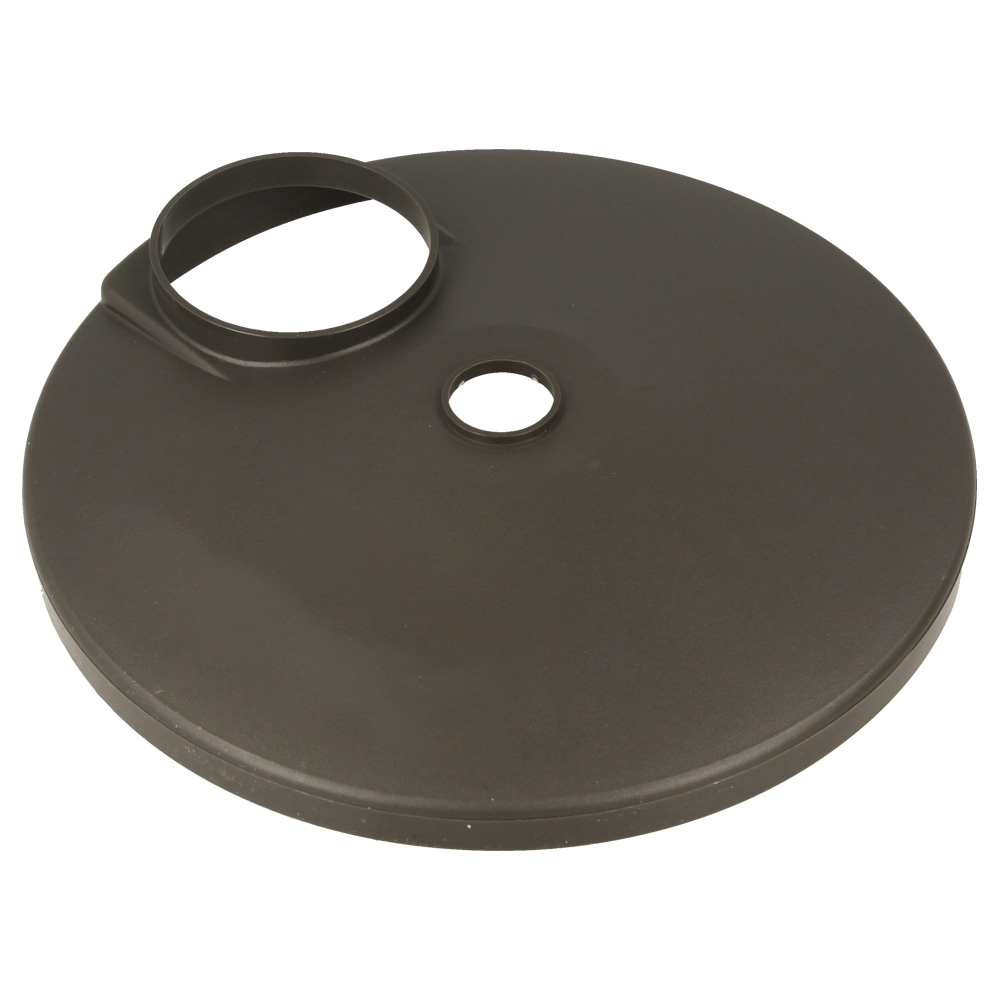

11	HV579 58 06-02 Available to backorder	Shield	£6.79 £5.66
12	HV729 57 74-01 Available to backorder	Screw Crpant	£1.67 £1.39
13	HV295 67 74-01 Available to backorder	Ring	£2.33 £1.94
14	HV740 42 10-00 Available to backorder	O-Ring	£3.82 £3.18
16	HV727 63 72-51 Available to backorder	Screw (M6 X 25)	£3.07 £2.56
17	HV295 67 43-01 Available to backorder	Spring	£8.86 £7.38
18	HV295 67 81-01 Available to backorder	Ball	£5.46 £4.55
19	HV578 79 02-01 Available to backorder	Handle Support Assy	£33.31 £27.76
20	HV579 58 17-01 Available to backorder	Link Arm	£12.18 £10.15
22	HV725 63 78-51 Available to backorder	Screw Ihcsfm (M6 X 40)	£2.24 £1.87
23	HV295 61 36-01 Available to backorder	Spring	£4.74 £3.95
24	HV731 71 16-51 Available to backorder	Hexagon Nut Flange (M8)	£2.94 £2.45
25	HV725 23 68-71 Available to backorder	Screw Ehhm	£2.30 £1.92
26	HV523 06 61-01 Available to backorder	Washer	£3.07 £2.56
27	HV295 66 77-01 Available to backorder	Lever	£11.54 £9.62
31	HV578 33 87-01 Available to backorder	Disc Spring	£2.30 £1.92
33	HV295 67 87-02 Available to backorder	Spring	£3.73 £3.11
34	HV735 31 14-00 Available to backorder	Circlip	£0.78 £0.65
35	HV295 66 69-01 Available to backorder	Pinion	£35.57 £29.64
36	HV578 79 01-01 Available to backorder	Handle Support Assy	£35.26 £29.38
37	HV579 58 18-01 Available to backorder	Shaft	£10.63 £8.86
38	HV579 58 10-01 Available to backorder	Shaft	£29.03 £24.19
40	HV295 66 17-01 Available to backorder	Tool Holder	£10.37 £8.64
41	HV578 97 60-02 Available to backorder	Screw Itxpantt (M5 X 18)	£2.05 £1.71
48	HV502 43 52-01 Available to backorder	Screw Itxpantt (M5 X 10)	£1.79 £1.49
49	HV529 72 23-01 Available to backorder	Cup	£11.21 £9.34
52	HV295 66 70-04 Available to backorder	Wheel Assy (Front)	£64.32 £53.60
53	HV295 68 86-04 Available to backorder	Wheel Assy (Front)	£31.20 £26.00
