Husqvarna LB 442i - 970482301 - Mower Deck / Cutting Deck

Name: Husqvarna LB 442i - 970482301 - Mower Deck / Cutting Deck
SKU: LB_442i_970482301_TZ_073888_HighResPng-group
Price: 0.69 GBP
Availability: InStock

Part No. LB_442i_970482301_TZ_073888_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna LB 442i - 970482301 - Mower Deck / Cutting Deck

Description

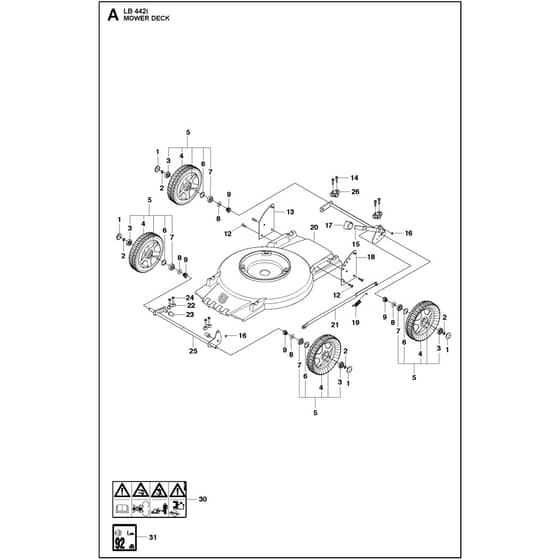

Husqvarna LB 442i - 970482301 - Mower Deck / Cutting Deck - Parts Diagram

	Part No.	Details
1	HV503 27 51-01 Available to backorder	Hub Cap	£4.22 £3.52
2	HV504 45 83-01 Available to backorder	Circlip	£2.69 £2.24
3	HV502 88 27-01 Available to backorder	Ball Bearing (6201-2RS.B9)	£6.66 £5.55
4	HV503 27 65-01 Available to backorder	Tire	£23.80 £19.83
5	HV503 27 56-02 Available to backorder	Wheel Assy	£42.23 £35.19
6	HV504 46 18-01 Available to backorder	Spacer Ring	£3.73 £3.11
7	HV503 24 29-01 Available to backorder	Ball Bearing (6201-2RS)	£8.03 £6.69
8	HV504 45 76-01 Available to backorder	Washer	£2.56 £2.13
9	HV503 33 30-01 Available to backorder	Spring	£3.77 £3.14
16	HV735 31 10-00 Available to backorder	Circlip	£1.67 £1.39
19	HV503 25 76-01 Available to backorder	Spring	£5.32 £4.43
20	HV503 24 72-06 Available to backorder	Chassis	£146.76 £122.30
21	HV503 24 97-02 Available to backorder	Rod	£19.28 £16.07
22	HV504 46 38-02 Available to backorder	Bracket	£2.33 £1.94
24	HV504 45 71-01 Available to backorder	Screw Itxpanm	£0.83 £0.69
25	HV503 27 09-01 Available to backorder	Front Axle Assy	£32.94 £27.45
30	HV579 73 39-01 Available to backorder	Decal	£3.32 £2.77
