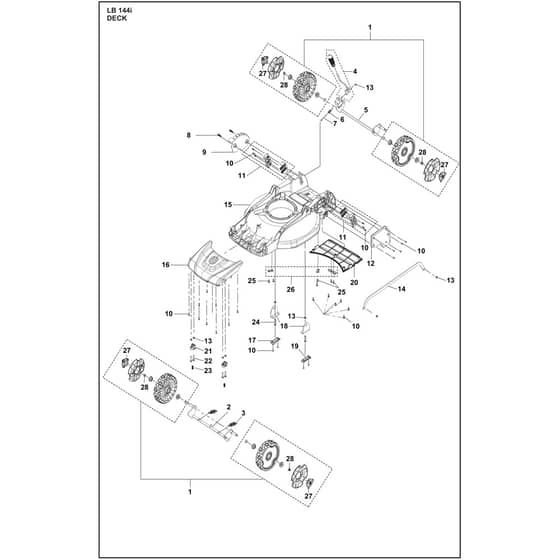

Husqvarna LB 144i - 970648201 - Deck - Parts Diagram

	Part No.	Details
1	HV531 14 67-37 Available to backorder	Wheel Kit	£42.23 £35.19
2	HV579 68 48-02 Available to backorder	Front Axle Assy	£58.97 £49.14
3	HV587 91 51-02 Available to backorder	Spring	£4.09 £3.41
4	HV597 52 64-02 Available to backorder	Height Adjuster	£36.74 £30.62
5	HV589 75 78-02 Available to backorder	Shaft Assy	£60.24 £50.20
6	HV587 91 51-03 Available to backorder	Spring	£4.32 £3.60
7	HV725 23 81-51 Available to backorder	Screw Ehhm	£4.57 £3.81
8	HV503 21 77-25 Available to backorder	Screw Ihsct	£2.15 £1.79
9	HV597 52 64-03 Available to backorder	Height Adjuster	£24.68 £20.57
10	HV589 79 42-01 Available to backorder	Screw	£1.40 £1.17
11	HV546 00 78-01 Available to backorder	Plate Kit	£9.64 £8.03
12	HV537 57 05-01 Available to backorder	Cover	£18.66 £15.55
13	HV587 91 31-01 Available to backorder	Nut	£1.56 £1.30
14	HV546 00 79-01 Available to backorder	Connection Rod	£18.66 £15.55
15	HV537 56 95-01 Available to backorder	Chassis	£153.72 £128.10
16	HV537 56 96-02 Available to backorder	Front Cover	£28.91 £24.09
17	HV537 57 00-01 Available to backorder	Bracket	£6.62 £5.52
19	HV537 57 00-02 Available to backorder	Bracket	£6.62 £5.52
20	HV537 57 07-01 Available to backorder	Skid Plate	£25.31 £21.09
21	HV535 39 68-01 Available to backorder	Plate	£5.06 £4.22
22	HV725 23 76-51 Available to backorder	Screw Ehhm	£2.36 £1.97
23	HV587 91 51-04 Available to backorder	Spring	£3.49 £2.91
24	HV538 73 75-01 Available to backorder	Screw	£1.69 £1.41
25	HV593 75 55-01 Available to backorder	Screw (For PNC 970648206. 970648207)	£0.77 £0.64
27	HV587 58 50-01 Available to backorder	Wheel Cover	£4.50 £3.75
28	HV587 91 35-01 Available to backorder	Locking Bolt	£2.60 £2.17
