Husqvarna KV03IIISPAREPARTS - Frame

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna KV03IIISPAREPARTS - Frame

Husqvarna KV03IIISPAREPARTS - Frame

Description

Husqvarna KV03IIISPAREPARTS

Model Year - - 2007-07

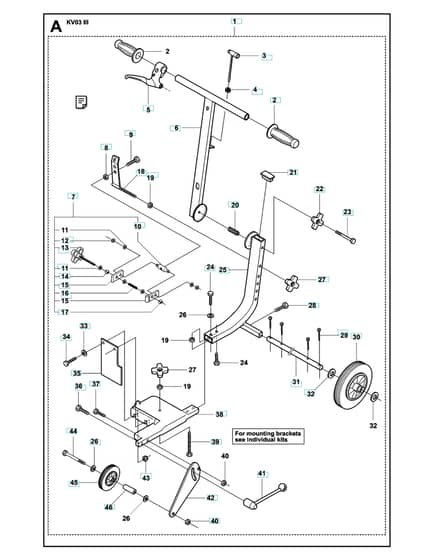

Frame - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	3		HV501 69 17-02 Available to backorder	Combination Wrench		£9.06 £7.55
	4		HV504 12 50-17 Available to backorder	Antivibration Element		£10.06 £8.38
	8		HV731 23 20-01 Available to backorder	Hexagon Nut		£3.04 £2.53
	9		HV725 24 99-71 Available to backorder	Screw Ehhm		£3.61 £3.01
	11		HV734 11 52-01 Available to backorder	Washer		£2.34 £1.95
	12		HV735 31 09-20 Available to backorder	E-Clip		£0.77 £0.64
	19		HV731 23 18-01 Available to backorder	Hexagon Nut		£3.24 £2.70
	23		HV725 24 75-51 Available to backorder	Screw Ehhm		£5.65 £4.71
	24		HV725 24 55-71 Available to backorder	Screw Ehhm		£3.30 £2.75
	25		HV506 35 98-01 Available to backorder	Frame		£90.06 £75.05
	26		HV734 11 65-41 Available to backorder	Washer		£3.62 £3.02
	28		HV725 24 51-51 Available to backorder	Screw		£3.62 £3.02
	34		HV725 23 29-51 Available to backorder	Screw		£1.82 £1.52
	36		HV725 25 40-71 Available to backorder	Screw Ehhm		£2.34 £1.95
	37		HV725 24 59-51 Available to backorder	Screw Ehhm		£6.34 £5.28
	40		HV732 21 18-01 Available to backorder	Lock Nut		£2.40 £2.00
	43		HV503 22 65-04 Available to backorder	Square Nut		£2.28 £1.90

Description

Husqvarna KV03IIISPAREPARTS

Model Year - - 2007-07

Frame - Parts Diagram
