Husqvarna KLIPPOLB453SE - Mower Deck & Cutting Deck

Description

Husqvarna KLIPPOLB453SE

Model Year - -

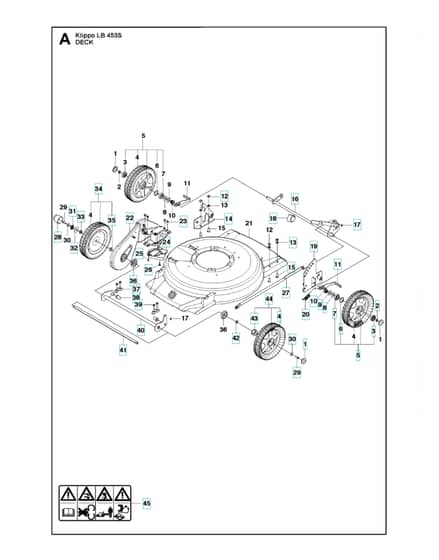

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
1	HV503 27 51-01 Available to backorder	Hub Cap	£4.22 £3.52
2	HV504 45 83-01 Available to backorder	Circlip	£2.69 £2.24
5	HV503 27 54-02 Available to backorder	Wheel Assy	£30.62 £25.52
6	HV504 46 18-01 Available to backorder	Spacer Ring	£3.73 £3.11
7	HV503 24 29-01 Available to backorder	Ball Bearing6201-2Rs	£8.03 £6.69
8	HV504 45 76-01 Available to backorder	Washer	£2.56 £2.13
9	HV504 45 73-01 Available to backorder	Washer	£3.84 £3.20
11	HV503 27 73-01 Available to backorder	Scraper	£14.10 £11.75
12	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.22 £2.68
13	HV735 21 64-01 Available to backorder	Lockwasher	£0.77 £0.64
14	HV503 26 58-01 Available to backorder	Handle Support Assy	£40.38 £33.65
16	HV503 25 81-01 Available to backorder	Rear Axle Assy	£44.11 £36.76
19	HV503 24 90-02 Available to backorder	Index Plate Assy	£49.96 £41.63
22	HV585 19 26-02 Available to backorder	Transmission Kit	£122.64 £102.20
24	HV522 54 63-01 Available to backorder	Belt Guard	£7.70 £6.42
26	HV504 46 70-01 Available to backorder	Screw Itxpanm	£1.79 £1.49
27	HV503 24 94-02 Available to backorder	Rod Assy	£33.11 £27.59
28	HV504 46 51-01 Available to backorder	Hub Cap	£5.02 £4.18
29	HV504 45 67-01 Available to backorder	Screw Ihscm	£2.05 £1.71
30	HV504 45 99-01 Available to backorder	Washer	£2.83 £2.36
31	HV503 33 23-01 Available to backorder	Spring	£3.97 £3.31
32	HV504 46 09-01 Available to backorder	Washer	£3.84 £3.20
33	HV504 46 13-01 Available to backorder	Driver	£8.98 £7.48
34	HV503 31 74-02 Available to backorder	Wheel Assy	£69.96 £58.30
35	HV503 27 71-01 Available to backorder	Bushing	£5.63 £4.69
36	HV504 46 36-01 Available to backorder	Bushing	£7.06 £5.88
37	HV504 46 38-02 Available to backorder	Bracket	£2.33 £1.94
40	HV503 26 92-01 Available to backorder	Front Axle	£57.04 £47.53
43	HV503 27 64-01 Available to backorder	Bushing	£7.06 £5.88
44	HV503 27 55-04 Available to backorder	Wheel Assy	£30.62 £25.52
45	HV579 73 39-01 Available to backorder	Decal	£3.32 £2.77
