Husqvarna K770 - Fuel Tank

Name: Husqvarna K770 - Fuel Tank
SKU: k770_fuel_tank-group
Price: 1.04 GBP
Availability: InStock

Part No. k770_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna K770

Model Year - -

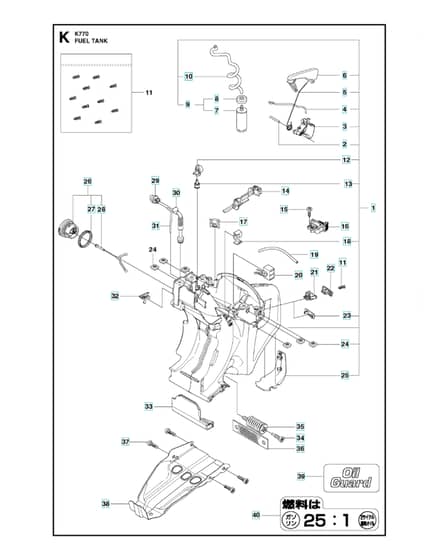

Fuel Tank - Parts Diagram

	Part No.	Details
2	HV720 12 40-20 In stock	Parallel Pin	£1.36 £1.13
3	HV588 08 62-01 In stock	Throttle Control	£14.87 £12.39
4	HV579 37 92-01 Available to backorder	Throttle Rod	£8.63 £7.19
6	HV588 13 77-01 In stock	Throttle Lockout	£16.38 £13.65
8	HV506 27 11-01 In stock	Hose Clamp	£3.59 £2.99
9	HV598 83 66-01 In stock	Fuel Filterincl. 7 - 8	£8.59 £7.16
11	HV502 23 33-01 Available to backorder	Kitoil Guard. Incl. 10 Pins	£12.07 £10.06
12	HV598 61 10-01 Available to backorder	Tank Vent Assy	£14.46 £12.05
13	HV501 15 29-01 In stock	Tank Vent Assy	£17.90 £14.92
14	HV544 22 90-02 Available to backorder	Choke Control	£7.32 £6.10
15	HV525 88 74-02 In stock	Screw Citxpant	£1.25 £1.04
16	HV506 31 86-04 In stock	Stop Switch	£7.76 £6.47
17	HV506 37 80-01 Available to backorder	Grommet	£7.74 £6.45
18	HV544 39 32-01 Available to backorder	Hose Clip	£2.24 £1.87
19	HV581 75 61-17 Available to backorder	Fuel Hose	£6.06 £5.05
20	HV544 38 41-02 Available to backorder	Electronic Box	£121.08 £100.90
21	HV501 01 88-01 Available to backorder	Housing	£2.99 £2.49
22	HV501 01 94-01 Available to backorder	Switch	£7.91 £6.59
23	HV501 37 13-01 Available to backorder	Lid	£3.90 £3.25
24	HV581 77 48-01 Available to backorder	Nut	£1.79 £1.49
25	HV588 19 82-01 Available to backorder	Ground Support	£6.55 £5.46
26	HV522 62 00-01 Available to backorder	Tank Cap Assy	£8.68 £7.23
27	HV537 21 50-01 Available to backorder	Gasket	£5.32 £4.43
28	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
29	HV540 05 49-01 Available to backorder	Purge	£6.29 £5.24
30	HV505 19 52-01 Available to backorder	Fuel Hose	£20.14 £16.78
31	HV537 04 24-14 Available to backorder	Fuel Hose	£4.32 £3.60
32	HV506 39 46-02 Available to backorder	Hub Cap	£3.50 £2.92
33	HV506 38 15-01 Available to backorder	Heat Shield	£5.57 £4.64
34	HV544 06 12-01 Available to backorder	Screw Itxscm	£2.23 £1.86
35	HV537 21 03-09 Available to backorder	Antivibration Element	£16.15 £13.46
36	HV544 23 82-01 Available to backorder	Band	£6.42 £5.35
37	HV503 21 54-20 Available to backorder	Screw Itxsct	£2.23 £1.86
39	HV581 09 54-02 Available to backorder	Decaloil Guard	£5.68 £4.73
40	HV506 31 30-01 Available to backorder	Labeljapan Only	£4.33 £3.61
