Husqvarna K770 - Cylinder, Piston & Muffler

Description

Husqvarna K770

Model Year - -

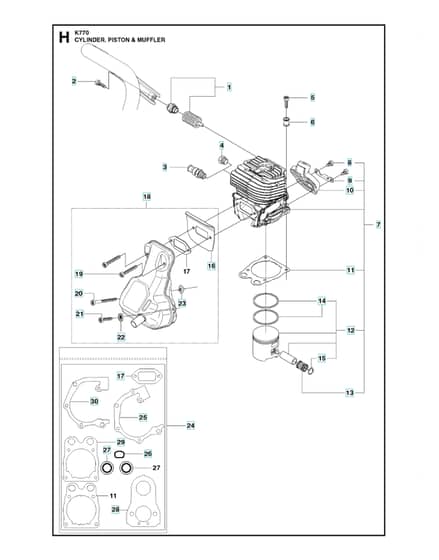

Cylinder, Piston & Muffler - Parts Diagram

	Part No.	Details
1	HV579 74 42-02 Available to backorder	AV Element	£14.14 £11.78
2	HV544 06 12-01 Available to backorder	Screw Itxscm	£2.23 £1.86
3	HV503 71 53-01 Available to backorder	Decompression Valve	£18.73 £15.61
4	HV503 55 22-01 Available to backorder	Plug	£8.06 £6.72
5	HV503 21 53-40 In stock	Screw Also 19 on drawing	£4.85 £4.04
6	HV576 71 76-02 In stock	Sleeve	£5.75 £4.79
7	HV581 47 61-04 In stock	Cylinder Assyincl. 8 - 13	£239.21 £199.34
8	HV503 21 53-16 Available to backorder	Screw Itxscm	£2.06 £1.72
9	HV506 36 88-01 Available to backorder	Bracket	£2.88 £2.40
10	HV574 23 18-02 Available to backorder	Plate	£10.61 £8.84
11	HV581 28 53-01 In stock	Head Gasket	£5.11 £4.26
12	HV506 37 24-08 Available to backorder	Piston Assyincl. 14 - 15	£80.40 £67.00
13	HV503 25 56-01 In stock	Needle Bearing	£17.92 £14.93
14	HV522 99 01-01 Available to backorder	Piston Rin	£13.22 £11.02
15	HV737 43 12-00 Available to backorder	Snap Ring	£2.36 £1.97
16	HV588 91 51-01 Available to backorder	Heat Deflector	£7.62 £6.35
17	HV588 93 25-01 Available to backorder	Exhaust Gasket	£7.58 £6.32
18	HV592 77 83-01 Available to backorder	Muffler Kitincl. 16 -17. 19 - 23	£61.08 £50.90
20	HV503 21 53-56 Available to backorder	Screw Itxscm	£3.31 £2.76
21	HV503 21 53-25 In stock	Screw Itxscm	£3.59 £2.99
22	HV503 23 04-02 Available to backorder	Washer	£4.60 £3.83
23	HV503 22 65-04 Available to backorder	Square Nut	£2.28 £1.90
24	HV581 35 74-02 In stock	Gasket Kitincl. 11. 17. 25 - 30	£23.92 £19.93
25	HV506 37 70-03 Available to backorder	Gasket	£4.80 £4.00
26	HV544 21 93-02 Available to backorder	Insert	£2.69 £2.24
27	HV503 26 02-04 In stock	Sealing Ringblue	£15.10 £12.58
28	HV506 37 68-04 Available to backorder	Gasket	£3.52 £2.93
29	HV506 37 67-01 Available to backorder	Gasket	£4.78 £3.98
30	HV506 37 70-02 Available to backorder	Gasket	£4.92 £4.10
