Husqvarna K770 - 967682101 - Guards

Name: Husqvarna K770 - 967682101 - Guards
SKU: K770_967682101_EZ_821101_HighResPng-group
Price: 1.15 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

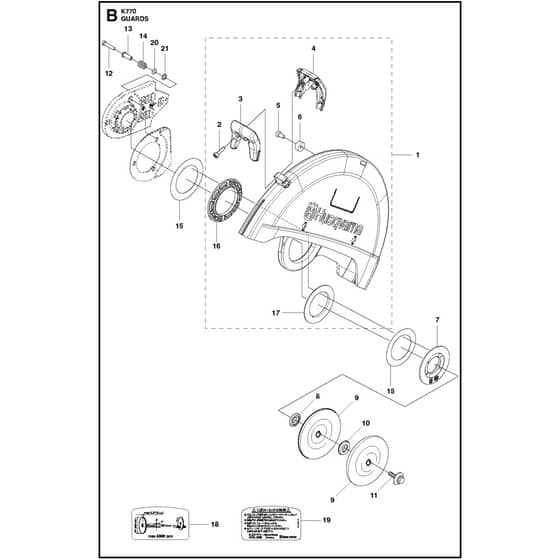

Husqvarna K770 - 967682101 - Guards - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV581 35 19-10 Available to backorder	Wheel Guard (14")	£152.88 £127.40
1	HV581 35 19-08 Available to backorder	Wheel Guard (12")	£129.72 £108.10
2	HV504 90 94-14 Available to backorder	Screw Itxsct	£1.84 £1.53
3	HV578 19 09-01 Available to backorder	Handle Half	£7.98 £6.65
4	HV578 76 09-01 Available to backorder	Handle Half	£7.66 £6.38
5	HV504 90 94-10 Available to backorder	Screw Itxsct	£1.38 £1.15
6	HV581 62 03-01 Available to backorder	Stop	£15.52 £12.93
8	HV584 43 83-01 Available to backorder	Support Flange	£11.20 £9.33
9	HV506 07 09-04 Available to backorder	Flange Washer (Diam 119mm. Japan 14")	£14.11 £11.76
9	HV583 87 44-02 Available to backorder	Flange (Diam 105mm)	£8.66 £7.22
10	HV506 37 96-01 In stock	Bushing (Diam 20 mm)	£9.88 £8.23
10	HV581 60 54-04 Available to backorder	Bushing (Diam 30. 5 mm)	£14.71 £12.26
10	HV578 39 82-01 Available to backorder	Bushing (Diam 20.25. 4mm)	£16.25 £13.54
10	HV506 37 96-22 Available to backorder	Bushing (Diam 22. 2 mm)	£16.12 £13.43
11	HV590 50 38-01 In stock	Screw	£13.46 £11.22
12	HV544 21 84-30 Available to backorder	Screw Itxscm	£2.00 £1.67
13	HV584 43 82-01 Available to backorder	Sleeve (12". Shiny)	£7.06 £5.88
13	HV584 43 82-02 Available to backorder	Sleeve (14". Black)	£8.28 £6.90
14	HV584 43 81-01 Available to backorder	Spring	£7.20 £6.00
15	HV584 43 78-01 Available to backorder	Shim	£15.02 £12.52
16	HV584 43 79-01 Available to backorder	Lining	£17.02 £14.18
17	HV584 43 80-01 Available to backorder	Lining	£9.38 £7.82
18	HV581 11 77-04 Available to backorder	Decal (12" 20mm)	£1.50 £1.25
18	HV581 11 77-05 Available to backorder	Decal (12". 1" and 20mm)	£3.56 £2.97
18	HV581 11 77-06 Available to backorder	Decal (14")	£4.37 £3.64
19	HV584 99 26-01 Available to backorder	Decal (12")	£4.07 £3.39
19	HV584 99 26-02 Available to backorder	Decal (14")	£3.61 £3.01
20	HV582 23 31-01 Available to backorder	Washer	£2.32 £1.93
21	HV582 23 32-01 Available to backorder	Washer	£2.32 £1.93
