Husqvarna K770 - 967682101 - Fuel Tank

Name: Husqvarna K770 - 967682101 - Fuel Tank
SKU: K770_967682101_FR_877752_HighResPng-group
Price: 1.1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

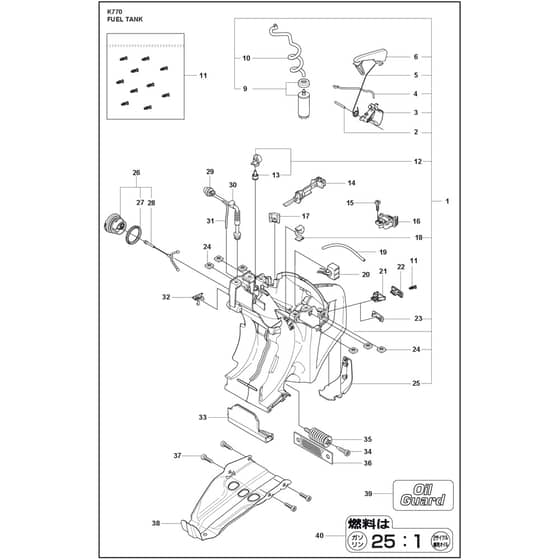

Husqvarna K770 - 967682101 - Fuel Tank - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV593 28 18-04 Available to backorder	Fuel Tank Assy	£105.12 £87.60
2	HV546 29 16-02 Available to backorder	Pin	£3.83 £3.19
3	HV588 08 62-01 In stock	Throttle Control	£13.48 £11.23
4	HV579 37 92-01 Available to backorder	Throttle Rod	£8.92 £7.43
5	HV595 83 57-01 Available to backorder	Spring	£4.92 £4.10
6	HV588 13 77-01 In stock	Throttle Lockout	£14.84 £12.37
9	HV598 83 66-01 In stock	Fuel Filter Kit	£7.80 £6.50
10	HV581 75 62-03 Available to backorder	Fuel Hose	£10.13 £8.44
11	HV502 23 33-01 Available to backorder	Kit (Oil Guard. Incl. 10 pins)	£11.32 £9.43
12	HV598 61 10-01 Available to backorder	Tank Vent Assy	£14.00 £11.67
13	HV501 15 29-01 In stock	Tank Vent Assy	£18.12 £15.10
14	HV544 22 90-02 Available to backorder	Choke Control	£7.06 £5.88
15	HV525 88 74-02 In stock	Screw Citxpant	£1.32 £1.10
16	HV506 31 86-04 In stock	Stop Switch	£7.04 £5.87
17	HV506 37 80-01 Available to backorder	Grommet	£7.98 £6.65
18	HV544 39 32-01 Available to backorder	Hose Clip	£2.32 £1.93
19	HV581 75 61-17 Available to backorder	Fuel Hose	£6.24 £5.20
20	HV544 38 41-02 Available to backorder	Electronic Box	£117.50 £97.92
21	HV501 01 88-01 Available to backorder	Housing	£3.08 £2.57
22	HV501 01 94-01 Available to backorder	Switch	£7.42 £6.18
23	HV501 37 13-01 Available to backorder	Lid	£4.02 £3.35
24	HV581 77 48-01 Available to backorder	Nut	£1.84 £1.53
25	HV588 19 82-01 Available to backorder	Ground Support	£6.76 £5.63
26	HV522 62 00-01 Available to backorder	Tank Cap Assy	£9.07 £7.56
26	HV522 62 00-01-1 Available to backorder	Tank Cap Assy	£7.00 £5.83
27	HV537 21 50-01 Available to backorder	Gasket	£5.36 £4.47
28	HV503 57 89-01 Available to backorder	Holder	£5.71 £4.76
29	HV540 05 49-01 Available to backorder	Purge	£6.46 £5.38
30	HV505 19 52-01 Available to backorder	Fuel Hose	£19.46 £16.22
31	HV537 04 24-14 Available to backorder	Fuel Hose	£4.18 £3.48
32	HV506 39 46-02 Available to backorder	Hub Cap	£3.32 £2.77
33	HV506 38 15-01 Available to backorder	Heat Shield	£5.38 £4.48
34	HV544 06 12-01 Available to backorder	Screw Itxscm	£2.16 £1.80
35	HV537 21 03-12 Available to backorder	Antivibration Element	£21.48 £17.90
36	HV544 23 82-01 Available to backorder	Band	£6.60 £5.50
37	HV503 21 54-20 Available to backorder	Screw Itxsct	£2.16 £1.80
38	HV506 37 19-02 Available to backorder	Baseplate	£13.36 £11.13
39	HV581 09 54-02 Available to backorder	Decal (Oil Guard)	£5.84 £4.87
40	HV506 31 30-01 Available to backorder	Label (Japan Only)	£4.44 £3.70
