Husqvarna K770 - 967682101 - Cylinder, Piston And Muffler

Name: Husqvarna K770 - 967682101 - Cylinder, Piston And Muffler
SKU: K770_967682101_MI_424725_HighResPng-group
Price: 1.49 GBP
Availability: InStock

Part No. K770_967682101_MI_424725_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K770 - 967682101 - Cylinder, Piston And Muffler

Description

Husqvarna K770 - 967682101 - Cylinder, Piston And Muffler - Parts Diagram

	Part No.	Details
1	HV579 74 42-02 Available to backorder	Antivibration Element	£14.14 £11.78
2	HV544 06 12-01 Available to backorder	Screw Itxscm	£2.23 £1.86
3	HV503 71 53-01 Available to backorder	Decompression Valve	£18.73 £15.61
4	HV503 55 22-01 Available to backorder	Plug	£8.06 £6.72
6	HV576 71 76-02 In stock	Sleeve	£5.75 £4.79
7	HV581 47 61-04 In stock	Cylinder Assy	£239.21 £199.34
8	HV503 21 53-16 Available to backorder	Screw Itxscm	£2.06 £1.72
9	HV506 36 88-01 Available to backorder	Bracket	£2.88 £2.40
10	HV574 23 18-02 Available to backorder	Plate	£10.61 £8.84
11	HV581 28 53-01 In stock	Gasket	£5.11 £4.26
12	HV506 37 24-08 Available to backorder	Piston Assy	£80.40 £67.00
13	HV577 57 24-01 In stock	Needle Bearing	£17.92 £14.93
14	HV546 31 31-01 Available to backorder	Piston Ring (From S.N 244907682)	£31.28 £26.07
14	HV522 99 01-01 Available to backorder	Piston Ring (Before S.N 244907682)	£13.22 £11.02
15	HV737 43 12-00 Available to backorder	Snap Ring	£2.36 £1.97
16	HV588 91 51-01 Available to backorder	Heat Deflector	£7.62 £6.35
17	HV588 93 25-01 Available to backorder	Gasket	£7.58 £6.32

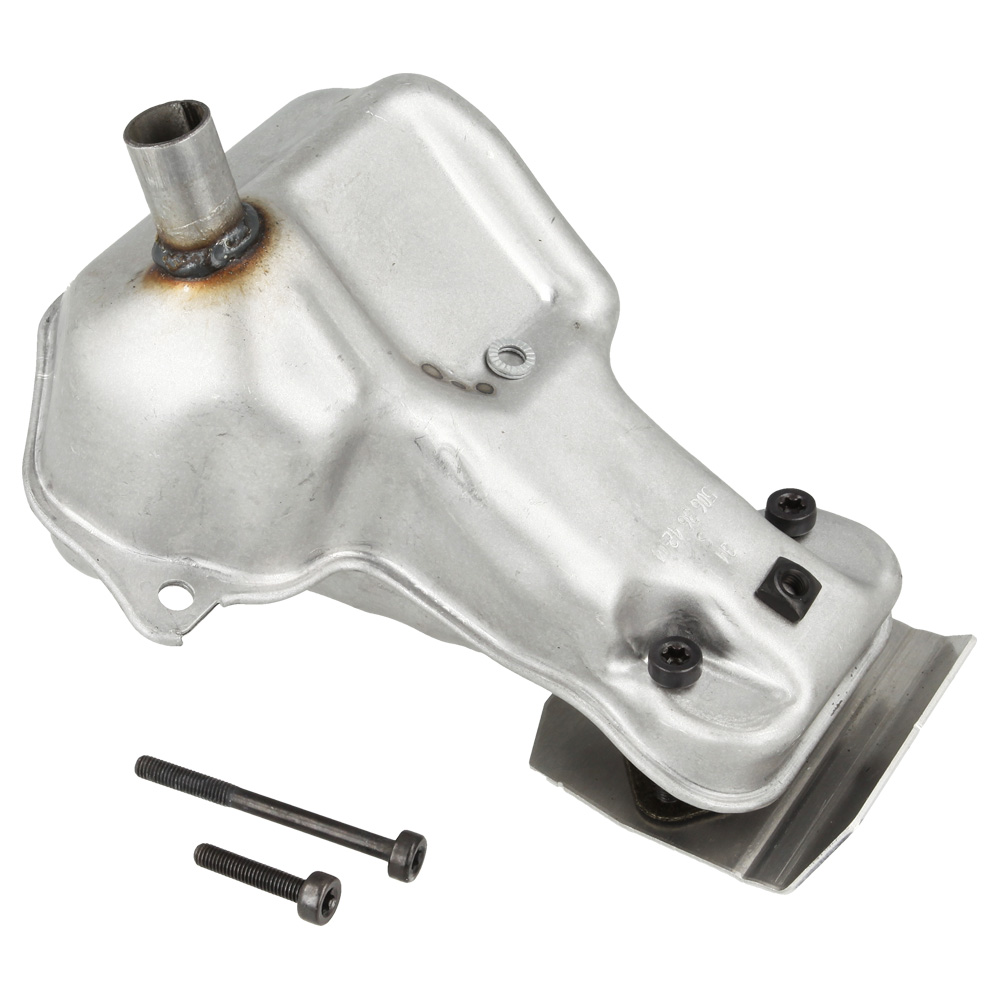

18	HV592 77 83-01 Available to backorder	Muffler Kit	£61.08 £50.90
19	HV503 21 53-40 In stock	Screw Itxscm	£4.85 £4.04
20	HV503 21 53-56 Available to backorder	Screw Itxscm	£3.31 £2.76
21	HV503 21 53-25 In stock	Screw Itxscm	£3.59 £2.99
22	HV503 23 04-02 Available to backorder	Washer	£4.60 £3.83
23	HV581 77 48-01 Available to backorder	Nut	£1.79 £1.49
24	HV581 35 74-02 In stock	Gasket Kit	£23.92 £19.93
25	HV506 37 70-03 Available to backorder	Gasket	£4.80 £4.00
26	HV544 21 93-02 Available to backorder	Insert	£2.69 £2.24
27	HV503 26 02-04 In stock	Sealing Ring (Blue)	£15.10 £12.58
28	HV506 37 68-04 Available to backorder	Gasket	£3.52 £2.93
29	HV506 37 67-01 Available to backorder	Gasket	£4.78 £3.98
30	HV506 37 70-02 Available to backorder	Gasket	£4.92 £4.10
