Husqvarna K770 - 967682101 - Belt Guard And Pulley

Name: Husqvarna K770 - 967682101 - Belt Guard And Pulley
SKU: K770_967682101_KM_691428_HighResPng-group
Price: 1.04 GBP
Availability: InStock

Part No. K770_967682101_KM_691428_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K770 - 967682101 - Belt Guard And Pulley

Description

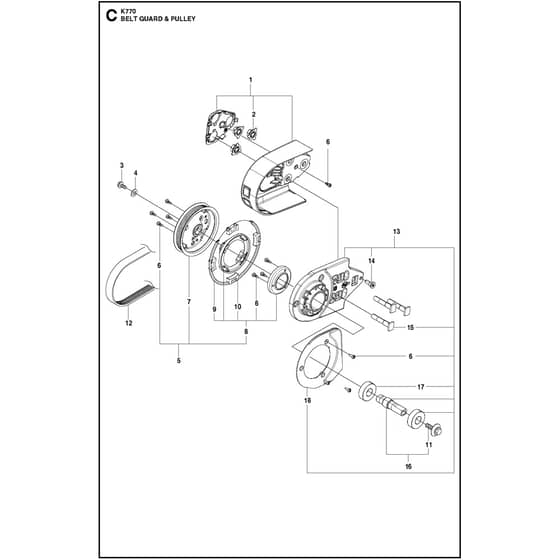

Husqvarna K770 - 967682101 - Belt Guard And Pulley - Parts Diagram

	Part No.	Details
1	HV501 05 71-03 Available to backorder	Belt Guard	£43.57 £36.31
2	HV586 74 37-01 Available to backorder	Nut Washer	£1.79 £1.49
3	HV503 20 00-45 Available to backorder	Screw Ehhfm	£4.18 £3.48
4	HV503 23 01-16 Available to backorder	Washer	£1.32 £1.10
5	HV588 47 04-03 Available to backorder	Pulley Assy	£48.52 £40.43
6	HV525 88 74-02 In stock	Screw Citxpant	£1.25 £1.04
7	HV590 89 58-01 In stock	Pulley	£25.43 £21.19
8	HV505 44 54-05 Available to backorder	Cassette	£37.12 £30.93
9	HV544 44 10-01 Available to backorder	Draw Spring	£4.18 £3.48
10	HV544 44 04-02 Available to backorder	Brake Shoe	£5.82 £4.85
11	HV590 50 38-01 In stock	Screw	£15.24 £12.70
12	HV544 90 84-06 In stock	Drive Belt	£31.06 £25.88
13	HV588 99 20-03 Available to backorder	Bearing Housing Assy	£76.56 £63.80
14	HV584 99 43-01 Available to backorder	Screw	£1.34 £1.12
15	HV503 87 54-02 Available to backorder	Bar Bolt	£5.51 £4.59
16	HV588 99 24-03 Available to backorder	Shaft	£36.83 £30.69
17	HV583 95 33-01 Available to backorder	Ball Bearing	£15.48 £12.90
18	HV586 80 10-02 Available to backorder	Slip Ring Holder	£5.82 £4.85
