Husqvarna K760 - Carburetor

Name: Husqvarna K760 - Carburetor
SKU: k760_carburetor-group
Price: 0.85 GBP
Availability: InStock

Part No. k760_carburetor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna K760

Model Year - - 2009-12

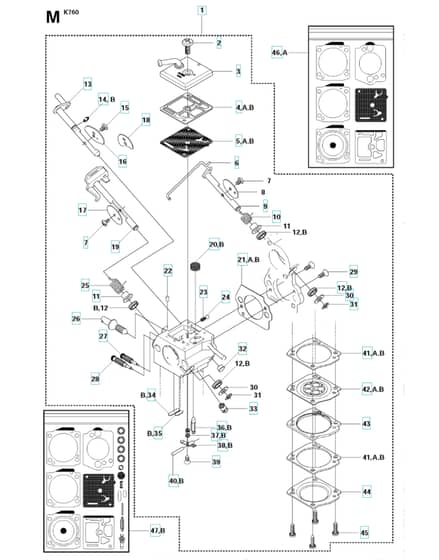

Carburetor - Parts Diagram

	Part No.	Details
1	HV596 87 56-01 In stock	Carburettorzama C3-El53	£123.02 £102.52
2	HV506 40 99-02 Available to backorder	Gasket Kit	£11.63 £9.69
3	HV506 41 00-04 Available to backorder	Gasket Kit	£17.71 £14.76
3	HV544 83 64-01 Available to backorder	Pump Cover	£23.72 £19.77
4	HV503 61 66-01 Available to backorder	Gasket	£4.63 £3.86
5	HV506 39 60-01 Available to backorder	Diaphragm Pump	£17.02 £14.18
6	HV506 39 65-01 Available to backorder	Rod	£2.52 £2.10
7	HV544 08 22-01 Available to backorder	Screw	£2.66 £2.22
9	HV506 39 71-01 Available to backorder	Shaft Assy	£17.75 £14.79
10	HV506 39 75-01 Available to backorder	Spring	£3.04 £2.53
11	HV506 39 54-01 Available to backorder	Collar	£4.33 £3.61
12	HV506 39 64-01 Available to backorder	Quad Ring	£10.01 £8.34
13	HV506 39 73-01 Available to backorder	Shaft Assy	£14.78 £12.32
14	HV506 39 90-01 Available to backorder	O-Ring	£8.51 £7.09
15	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
16	HV506 39 78-01 Available to backorder	Valve	£5.98 £4.98
17	HV537 17 70-01 Available to backorder	Valve	£20.44 £17.03
18	HV522 60 75-01 Available to backorder	Choke Valvejapan Only	£21.35 £17.79
19	HV506 39 74-01 Available to backorder	Shaft Assy	£14.46 £12.05
20	HV503 53 57-01 Available to backorder	Strainer	£5.44 £4.53
21	HV506 39 58-01 Available to backorder	Gasket	£7.00 £5.83
22	HV503 48 11-01 Available to backorder	Piece	£6.36 £5.30
25	HV544 83 65-01 Available to backorder	Spring	£7.31 £6.09
26	HV506 39 72-01 Available to backorder	Screw	£7.91 £6.59
27	HV506 39 70-01 Available to backorder	Screw	£14.14 £11.78
28	HV506 39 69-01 Available to backorder	Screw	£14.14 £11.78
29	HV537 38 51-01 Available to backorder	Screw	£1.13 £0.94
30	HV506 39 79-01 Available to backorder	Washer	£3.26 £2.72
31	HV537 38 52-01 Available to backorder	Clip	£1.02 £0.85
32	HV506 39 91-01 Available to backorder	Plug	£2.39 £1.99
33	HV506 39 61-01 Available to backorder	Nozzle Assy	£19.98 £16.65
34	HV503 53 56-01 Available to backorder	Plug Welch	£5.17 £4.31
36	HV537 17 62-01 Available to backorder	Valve	£13.37 £11.14
37	HV575 44 13-01 Available to backorder	Spring	£2.39 £1.99
38	HV537 17 64-01 Available to backorder	Lever	£6.36 £5.30
39	HV544 08 21-01 Available to backorder	Screw	£2.09 £1.74
40	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.64 £3.87
42	HV506 39 57-01 Available to backorder	Diaphragm Assy	£14.62 £12.18
43	HV506 39 55-01 Available to backorder	Cover	£10.13 £8.44
44	HV506 39 56-01 Available to backorder	Cover	£9.74 £8.12
45	HV506 39 66-01 Available to backorder	Screw	£1.51 £1.26
