Husqvarna K760 - Air Filter

Name: Husqvarna K760 - Air Filter
SKU: k760_air_filter-group
Price: 1.81 GBP
Availability: InStock

Part No. k760_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna K760

Model Year - - 2009-12

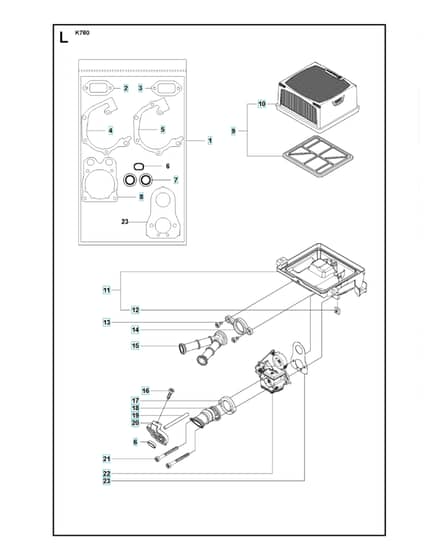

Air Filter - Parts Diagram

	Part No.	Details

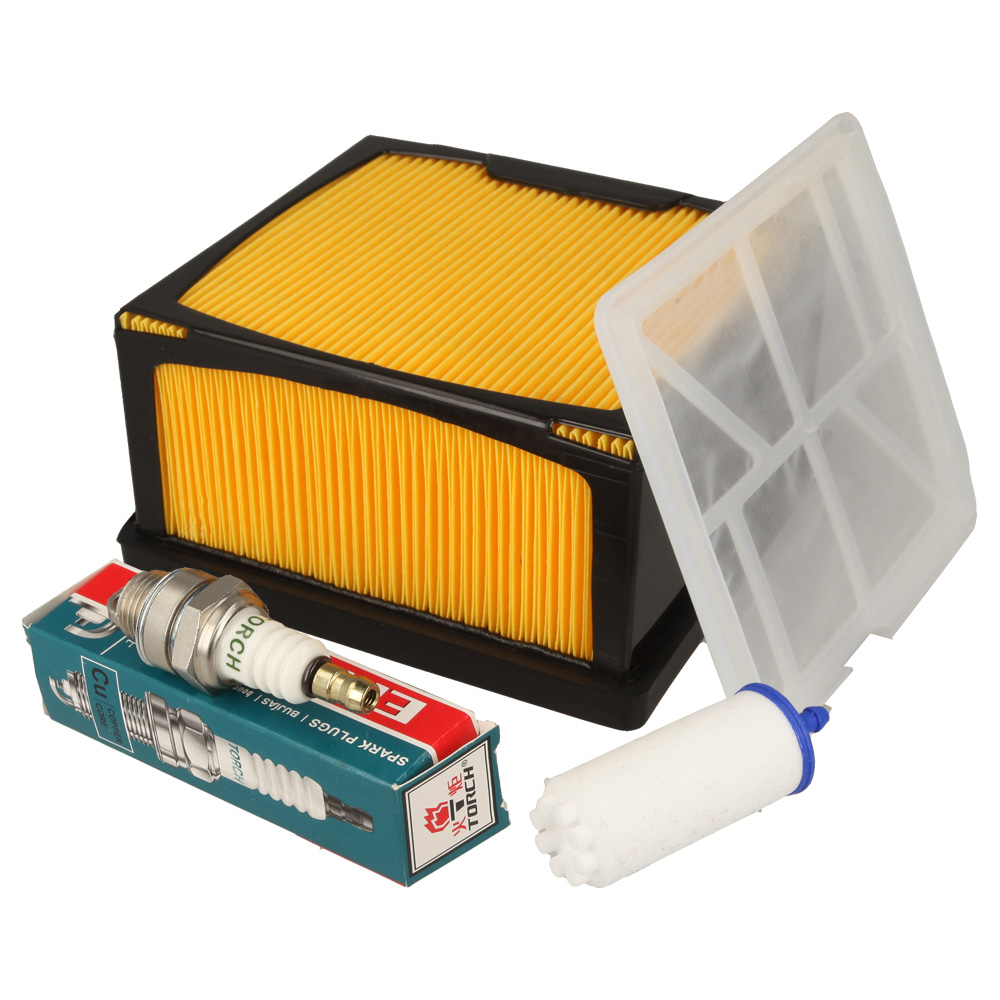

0	3833 In stock	Non-Gen Service Kit	£12.18 £10.15
1	6768 In stock	Non-Gen Gasket Set	£13.00 £10.83
2	HV506 41 23-01 Available to backorder	Gasket	£8.77 £7.31
3	HV588 93 25-01 Available to backorder	Gasket	£7.58 £6.32
4	HV506 37 70-02 Available to backorder	Gasket	£4.92 £4.10
5	HV506 37 70-03 Available to backorder	Gasket	£4.80 £4.00
6	HV544 21 93-02 Available to backorder	Insert	£2.69 £2.24
7	HV503 26 02-04 In stock	Sealing Ring	£15.10 £12.58
8	HV506 37 67-01 Available to backorder	Gasket	£4.78 £3.98
9	HV574 36 23-02 Available to backorder	Air Filter Assyincl. 8	£33.29 £27.74
9	3575 In stock	Non-Gen Air Filter	£7.52 £6.27
9	3678 In stock	Non-Gen Pre Filter	£2.17 £1.81
10	3674 In stock	Non-Gen Air Filter	Was £12.60 £10.50 Special Price £7.19 £5.99
11	HV575 35 40-01 Available to backorder	Carburettor Bracketincl. 12	£24.44 £20.37
12	HV503 22 65-04 Available to backorder	Square Nut	£2.28 £1.90
13	HV503 21 53-10 Available to backorder	Screw Itxscm	£2.23 £1.86
14	HV506 37 06-01 Available to backorder	Flange Inlet Pipe	£2.52 £2.10
15	HV525 73 32-01 Available to backorder	Inlet Pipe	£25.72 £21.43
16	HV503 21 53-20 Available to backorder	Screw Itxscm	£2.23 £1.86
17	HV576 89 01-01 Available to backorder	Flange Inlet Pipe	£2.75 £2.29
18	HV525 73 31-01 Available to backorder	Inlet Pipe	£22.61 £18.84
20	HV544 35 26-01 In stock	Plate	£25.60 £21.33
21	HV503 21 53-56 Available to backorder	Screw Itxscm	£3.31 £2.76
22	HV596 87 56-01 In stock	Carburettor Zama C3-El53	£123.02 £102.52
22	3853 In stock	Non-Gen Carburettor	£32.76 £27.30
23	HV506 37 68-04 Available to backorder	Gasket	£3.52 £2.93
