Husqvarna K7000 - 970744501 - Handle

Part No. K7000_970744501_SX_046119_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K7000 - 970744501 - Handle

Husqvarna K7000 - 970744501 - Handle

Description

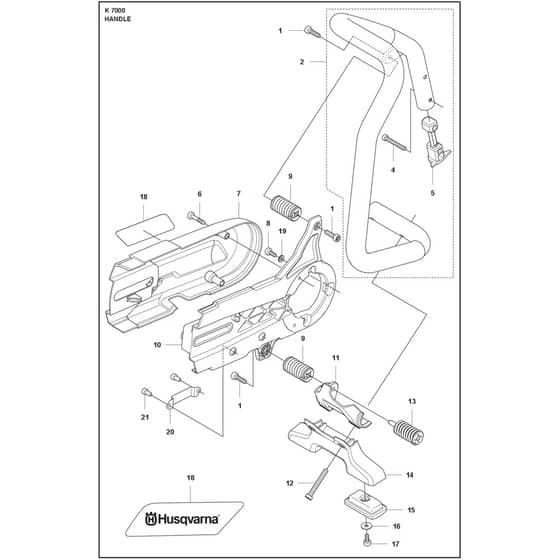

Husqvarna K7000 - 970744501 - Handle - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV544 21 84-20 Available to backorder	Screw Itxscm		£2.47 £2.06
	2		HV581 80 26-01 Available to backorder	Front Handle Assy (Inkl. 3-5)		£50.95 £42.46
	4		HV504 90 94-40 Available to backorder	Screw Itxsct		£1.79 £1.49
	5		HV575 29 58-01 Available to backorder	Plug		£4.45 £3.71
	6		HV503 21 53-26 Available to backorder	Screw Itxscm		£1.94 £1.62
	7		HV525 34 13-03 Available to backorder	Belt Guard (From S.N 240718163)		£10.82 £9.02
	7		HV525 34 13-02 Available to backorder	Belt Guard (Before S.N 240718163)		£37.88 £31.57
	8		HV503 21 53-16 Available to backorder	Screw Itxscm		£2.06 £1.72
	9		HV575 41 22-01 Available to backorder	Antivibration Element		£11.35 £9.46
	10		HV525 33 94-01 Available to backorder	Chassis (Before S.N 240718163)		£95.76 £79.80
	11		HV586 42 61-01 Available to backorder	Bracket		£14.46 £12.05
	12		HV503 21 54-45 Available to backorder	Screw Itxsct		£2.39 £1.99
	13		HV537 21 03-11 Available to backorder	Antivibration Element		£11.35 £9.46
	14		HV575 55 03-01 Available to backorder	Ground Support		£36.37 £30.31
	15		HV544 81 16-01 Available to backorder	Base		£5.82 £4.85
	16		HV734 11 47-41 Available to backorder	Washer		£2.30 £1.92
	17		HV503 21 53-12 Available to backorder	Screw Itxscm		£1.79 £1.49
	19		HV503 23 04-02 Available to backorder	Washer		£4.60 £3.83
	21		HV525 82 49-04 Available to backorder	Screw Itxscm		£1.66 £1.38

Description

Husqvarna K7000 - 970744501 - Handle - Parts Diagram
