Husqvarna K540i - 970664001 - Front Handle

Name: Husqvarna K540i - 970664001 - Front Handle
SKU: K540i_970664001_K_20540i_FRONT_20HANDLE_HighResPng-group
Price: 0.99 GBP
Availability: InStock

Part No. K540i_970664001_K_20540i_FRONT_20HANDLE_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K540i - 970664001 - Front Handle

Description

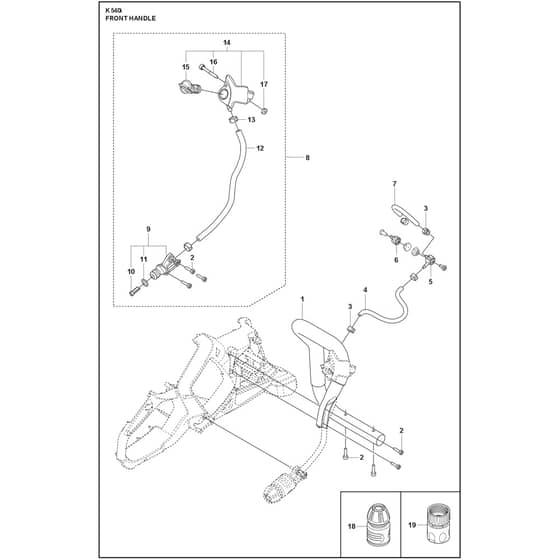

Husqvarna K540i - 970664001 - Front Handle - Parts Diagram

	Part No.	Details
1	HV536 38 17-01 Available to backorder	Front Handle	£71.64 £59.70
2	HV580 29 29-01 Available to backorder	Screw Itxsct	£2.28 £1.90
3	HV506 49 87-04 Available to backorder	Hose Clamp	£4.49 £3.74
4	HV578 19 83-08 Available to backorder	Hose (HOSE L.185mm)	£5.69 £4.74
5	HV578 19 07-01 In stock	Housing	£4.78 £3.98
6	HV578 19 08-01 Available to backorder	Housing	£4.94 £4.12
7	HV578 19 83-12 Available to backorder	Hose (HOSE L.140mm)	£4.60 £3.83
8	HV529 99 82-02 Available to backorder	Hose	£41.63 £34.69
9	HV529 96 39-01 Available to backorder	Nipple	£10.03 £8.36
10	HV589 78 07-01 Available to backorder	Strainer	£7.94 £6.62
11	HV505 10 35-01 Available to backorder	O-Ring	£1.51 £1.26
12	HV578 19 81-14 Available to backorder	Hose (HOSE L.255mm)	£5.51 £4.59
13	HV589 63 86-01 Available to backorder	Hose Clamp	£1.62 £1.35
14	HV578 24 33-06 Available to backorder	Valve Assy	£18.95 £15.79
15	HV581 35 70-02 Available to backorder	Lever Assy	£14.47 £12.06
16	HV503 21 53-41 In stock	Screw Itxscm	Was £2.74 £2.28 Special Price £1.19 £0.99
17	HV503 22 65-04 Available to backorder	Square Nut	£2.28 £1.90
18	HV503 26 60-04 Available to backorder	Coupler (RoW)	£7.80 £6.50
19	HV503 26 60-03 Available to backorder	Coupler (US)	£10.13 £8.44
