Husqvarna K40 - 968365401 - Pulley

Name: Husqvarna K40 - 968365401 - Pulley
SKU: K40_968365401_NU_159662_HighResPng-group
Price: 1.1 GBP
Availability: InStock

Part No. K40_968365401_NU_159662_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

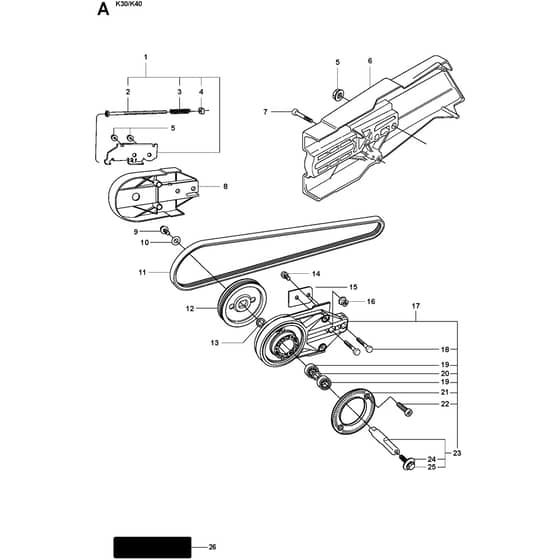

Husqvarna K40 - 968365401 - Pulley - Parts Diagram

	Part No.	Details
1	HV506 03 06-03 Available to backorder	Belt Tensioner Assy (Incl. 2 - 4)	£22.66 £18.88
2	HV503 20 72-20 Available to backorder	Screw Citxscm	£10.48 £8.73
3	HV506 21 95-01 Available to backorder	Compression Spring	£2.99 £2.49
4	HV503 22 66-01 Available to backorder	Square Nut	£2.86 £2.38
5	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
6	HV506 02 90-02 Available to backorder	Cutter Arm	£68.76 £57.30
7	HV503 21 53-20 Available to backorder	Screw Itxscm	£2.23 £1.86
8	HV506 09 87-02 Available to backorder	Belt Guard	£15.66 £13.05
9	HV503 20 00-45 Available to backorder	Screw Ehhfm	£4.18 £3.48
10	HV503 23 01-16 Available to backorder	Washer	£1.32 £1.10
11	HV544 97 63-03 Available to backorder	Drive Belt	£33.83 £28.19
12	HV544 98 09-01 Available to backorder	Pulley	£100.92 £84.10
13	HV503 23 01-04 Available to backorder	Washer	£2.54 £2.12
14	HV505 57 41-16 Available to backorder	Screw Itxscm	£1.94 £1.62
15	HV525 60 65-01 Available to backorder	Spacer	£13.85 £11.54
16	HV506 14 32-01 Available to backorder	Nut Cap	£8.94 £7.45
17	HV506 41 34-04 Available to backorder	Bearing Housing Assy (Incl. 18 - 23)	£79.20 £66.00
18	HV506 03 32-02 Available to backorder	Screw	£4.75 £3.96
19	HV583 95 33-01 Available to backorder	Ball Bearing	£15.48 £12.90
20	HV506 20 18-01 Available to backorder	Spacing Sleeve	£12.62 £10.52
21	HV506 28 84-01 Available to backorder	Screen	£5.52 £4.60
22	HV503 21 53-10 Available to backorder	Screw Itxscm	£2.23 £1.86
23	HV506 29 83-71 Available to backorder	Shaft (Incl. 24 - 25)	£56.18 £46.82
25	HV581 85 52-01 Available to backorder	Screw	£17.15 £14.29
26	HV506 30 97-05 Available to backorder	Label (Japan only)	£3.90 £3.25
