Husqvarna K40 - 968365401 - Air Motor

Name: Husqvarna K40 - 968365401 - Air Motor
SKU: K40_968365401_LI_763669_HighResPng-group
Price: 0.64 GBP
Availability: InStock

Part No. K40_968365401_LI_763669_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

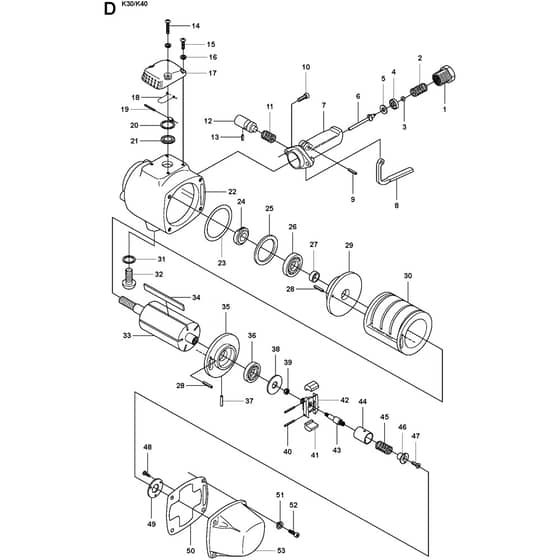

Husqvarna K40 - 968365401 - Air Motor - Parts Diagram

	Part No.	Details
1	HV506 19 06-01 Available to backorder	Fitting	£161.28 £134.40
2	HV506 19 29-01 Available to backorder	Spring	£26.39 £21.99
3	HV506 19 41-01 Available to backorder	Throttle Valve	£10.75 £8.96
4	HV506 19 27-01 Available to backorder	Washer	£31.74 £26.45
5	HV506 19 26-01 Available to backorder	Valve	£9.41 £7.84
6	HV506 19 28-01 Available to backorder	Shaft	£82.80 £69.00
7	HV506 19 08-01 Available to backorder	Handle	£291.12 £242.60
8	HV506 19 18-01 Available to backorder	Lever	£69.48 £57.90
9	HV506 19 58-01 Available to backorder	Pin Retaining Screw	£3.59 £2.99
10	HV544 21 84-20 Available to backorder	Screw Itxscm	£2.47 £2.06
11	HV506 19 40-01 Available to backorder	Spring	£9.25 £7.71
12	HV506 19 39-01 Available to backorder	Knob	£84.24 £70.20
13	HV506 19 65-01 Available to backorder	Screw	£3.59 £2.99
15	HV725 52 95-55 Available to backorder	Screw Ihscm	£1.03 £0.86
16	HV735 21 36-01 Available to backorder	Lockwasher	£0.77 £0.64
18	HV506 19 53-01 Available to backorder	Spring	£34.60 £28.83
19	HV506 19 60-01 Available to backorder	Pin Retaining Screw	£4.75 £3.96
20	HV506 19 54-01 Available to backorder	Tool Holder	£38.46 £32.05
21	HV506 19 52-01 Available to backorder	Valve	£17.15 £14.29
22	HV506 19 42-01 Available to backorder	Housing (K40)	£523.20 £436.00
23	HV506 19 49-01 Available to backorder	Adjusting Washer	£13.72 £11.43
24	HV506 19 47-01 Available to backorder	Rotor Nut	£61.56 £51.30
25	HV506 19 57-01 Available to backorder	Bearing	£14.32 £11.93
26	HV506 19 15-01 Available to backorder	Ball Bearing	£135.60 £113.00
27	HV506 19 48-01 Available to backorder	Adjusting Sleeve	£49.96 £41.63
28	HV506 19 61-01 Available to backorder	Pin Retaining Screw	£4.50 £3.75
29	HV506 19 46-01 Available to backorder	Bearing Housing	£96.12 £80.10
30	HV506 19 44-01 Available to backorder	Air Cleaner (K40)	£296.69 £247.24
30	HV506 19 44-11 Available to backorder	Cylinder (K30)	£400.31 £333.59
33	HV506 19 43-01 Available to backorder	Rotor (K40)	£115.08 £95.90
33	HV506 19 43-11 Available to backorder	Rotor (K30)	£551.26 £459.38
34	HV506 19 16-02 Available to backorder	Rotor Blade. Set (K40)	£125.40 £104.50
34	HV506 19 16-11 Available to backorder	Rotor (K30)	£91.80 £76.50
35	HV506 19 45-01 Available to backorder	Bearing Housing	£305.09 £254.24
36	HV503 25 00-02 Available to backorder	Ball Bearing	£25.51 £21.26
37	HV506 19 62-01 Available to backorder	Pin Retaining Screw	£4.33 £3.61
38	HV506 19 50-01 Available to backorder	Washer	£26.70 £22.25
39	HV731 23 14-05 Available to backorder	Hexagon Nut	£1.56 £1.30
40	HV506 19 59-01 Available to backorder	Pin Retaining Screw	£4.03 £3.36
41	HV506 19 35-01 Available to backorder	Regulator Weight (K40)	£65.88 £54.90
41	HV506 19 35-11 Available to backorder	Weight (K30)	£104.76 £87.30
42	HV506 19 34-01 Available to backorder	Tool Holder	£240.48 £200.40
43	HV506 19 37-01 Available to backorder	Shaft	£63.24 £52.70
44	HV506 19 31-01 Available to backorder	Sleeve	£78.24 £65.20
45	HV506 19 32-11 Available to backorder	Spring (K30)	£24.89 £20.74
46	HV506 19 38-01 Available to backorder	Valve	£70.44 £58.70
47	HV724 32 91-01 Available to backorder	Screw	£1.34 £1.12
48	HV723 12 89-51 Available to backorder	Screw Slchm	£1.37 £1.14
49	HV506 19 56-01 Available to backorder	Washer	£40.85 £34.04
50	HV506 19 13-01 Available to backorder	Gasket	£34.27 £28.56
51	HV735 11 53-50 Available to backorder	Spring Washer	£2.30 £1.92
52	HV725 53 70-55 Available to backorder	Screw Ihscm	£2.22 £1.85
