Husqvarna K3600 MK II - 968424101 - Lever

Description

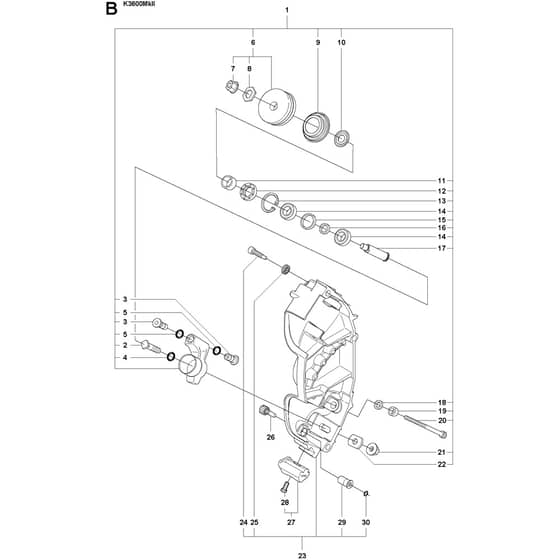

Husqvarna K3600 MK II - 968424101 - Lever - Parts Diagram

	Part No.	Details
1	HV506 35 18-10 Available to backorder	Lever Assy	£355.56 £296.30
2	HV506 34 64-01 Available to backorder	Screw	£13.42 £11.18
3	HV506 33 49-03 Available to backorder	Bushing	£12.07 £10.06
4	HV503 26 30-08 Available to backorder	O-Ring	£1.32 £1.10
5	HV503 26 30-26 Available to backorder	O-Ring	£1.51 £1.26
6	HV506 35 21-04 Available to backorder	Support Roller	£50.95 £42.46
7	HV503 22 04-01 In stock	Nut	£2.05 £1.71
8	HV506 30 34-01 Available to backorder	Driver	£3.90 £3.25
9	HV506 39 95-01 Available to backorder	Sealing	£21.62 £18.02
10	HV506 32 17-01 Available to backorder	Washer	£3.29 £2.74
11	HV506 37 93-02 Available to backorder	Spacing Sleeve	£20.58 £17.15
12	HV503 26 20-01 Available to backorder	Sealing Ring	£21.62 £18.02
13	HV735 31 28-10 Available to backorder	Circlip	£3.59 £2.99
14	HV529 60 26-01 Available to backorder	Ball Bearing	£11.05 £9.21
15	HV506 31 68-04 Available to backorder	Spacing Sleeve	£3.80 £3.17
17	HV506 49 32-02 Available to backorder	Shaft	£26.86 £22.38
18	HV506 37 63-01 Available to backorder	Spacer	£3.90 £3.25
19	HV506 37 64-01 Available to backorder	Rubber Bushing	£8.81 £7.34
20	HV544 21 84-55 Available to backorder	Screw Itxscm	£6.42 £5.35
21	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
22	HV506 34 63-01 Available to backorder	Washer	£5.68 £4.73
23	HV521 91 50-02 Available to backorder	Cover	£373.92 £311.60
24	HV503 20 54-35 Available to backorder	Screw	£2.86 £2.38
25	HV503 23 04-03 Available to backorder	Washer	£2.86 £2.38
26	HV505 57 49-01 Available to backorder	Adjustment Wheel	£28.03 £23.36
27	HV506 35 19-03 Available to backorder	Wear Protection	£15.66 £13.05
28	HV505 57 41-16 Available to backorder	Screw Itxscm	£1.94 £1.62
29	HV506 33 08-01 Available to backorder	Thread Insert	£18.22 £15.18
30	HV740 42 04-00 Available to backorder	O-Ring	£1.32 £1.10
