Husqvarna K3600 MK II - 968424101 - Handle

Name: Husqvarna K3600 MK II - 968424101 - Handle
SKU: K3600_MK_II_968424101_JR_319656_Original_20file-group
Price: 0.99 GBP
Availability: InStock

Part No. K3600_MK_II_968424101_JR_319656_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K3600 MK II - 968424101 - Handle

Description

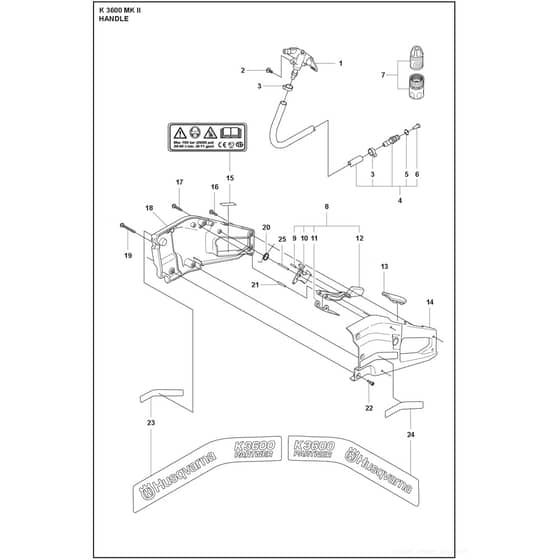

Husqvarna K3600 MK II - 968424101 - Handle - Parts Diagram

	Part No.	Details
1	HV506 34 94-04 Available to backorder	Tap	£58.49 £48.74
2	HV503 21 46-01 Available to backorder	Screw	£1.34 £1.12
3	HV576 12 97-01 Available to backorder	Hose Clamp	£3.88 £3.23
4	HV506 29 31-04 Available to backorder	Hose Kit	£34.87 £29.06
5	HV505 10 35-01 Available to backorder	O-Ring	£1.51 £1.26
6	HV589 78 07-01 Available to backorder	Strainer	£7.94 £6.62
7	HV503 26 60-04 Available to backorder	Coupler (RoW)	£7.80 £6.50
7	HV503 26 60-03 Available to backorder	Coupler (USA)	£10.13 £8.44
8	HV506 37 76-02 Available to backorder	Throttle Trigger	£22.20 £18.50
9	HV720 12 71-52 Available to backorder	Parallel Pin	£1.34 £1.12
10	HV506 20 34-03 Available to backorder	Throttle Trigger	£5.52 £4.60
12	HV506 27 21-02 Available to backorder	Throttle Lockout	£7.49 £6.24
13	HV506 35 54-03 Available to backorder	Window	£14.32 £11.93
14	HV506 24 52-03 Available to backorder	Handle Half	£32.93 £27.44
16	HV503 21 53-16 Available to backorder	Screw Itxscm	£2.06 £1.72
17	HV503 21 53-26 Available to backorder	Screw Itxscm	£1.94 £1.62
18	HV506 24 53-03 Available to backorder	Handle Half	£26.53 £22.11
19	HV503 21 53-41 In stock	Screw Itxscm	Was £2.74 £2.28 Special Price £1.19 £0.99
20	HV506 26 26-01 Available to backorder	Torsion Spring	£4.94 £4.12
21	HV720 13 16-06 Available to backorder	Parallel Pin	£4.33 £3.61
22	HV503 21 53-12 Available to backorder	Screw Itxscm	£1.79 £1.49
23	HV544 87 29-02 Available to backorder	Label	£9.98 £8.32
24	HV544 87 30-02 Available to backorder	Label	£9.83 £8.19
25	HV720 13 13-06 Available to backorder	Parallel Pin	£1.97 £1.64
