Husqvarna K2500 - 968365401 - Chassis / Frame

Name: Husqvarna K2500 - 968365401 - Chassis / Frame
SKU: K2500_968365401_NW_384554_Original_20file-group
Price: 0.99 GBP
Availability: InStock

Part No. K2500_968365401_NW_384554_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K2500 - 968365401 - Chassis / Frame

Description

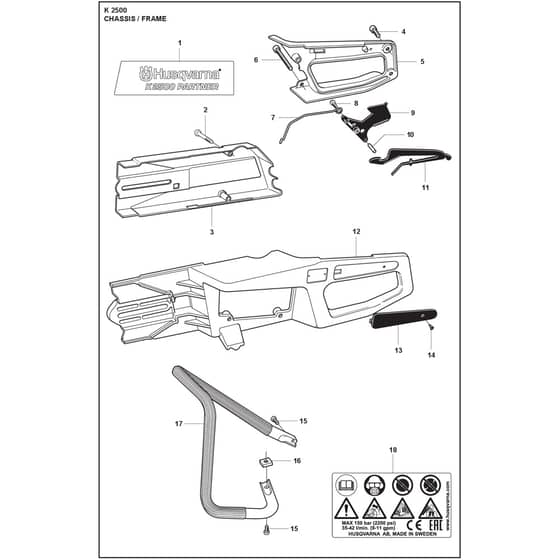

Husqvarna K2500 - 968365401 - Chassis / Frame - Parts Diagram

	Part No.	Details
1	HV544 87 27-02 Available to backorder	Label	£11.09 £9.24
2	HV503 21 53-41 In stock	Screw Itxscm	Was £2.74 £2.28 Special Price £1.19 £0.99
3	HV506 20 28-02 Available to backorder	Belt Guard	£35.04 £29.20
4	HV505 57 41-16 Available to backorder	Screw Itxscm	£1.94 £1.62
5	HV506 20 16-02 Available to backorder	Handle Half	£152.52 £127.10
6	HV503 21 53-49 Available to backorder	Screw Itxscm	£2.95 £2.46
7	HV506 20 33-02 Available to backorder	Throttle Rod	£9.25 £7.71
8	HV503 21 28-10 Available to backorder	Screw Ccrpant	£1.32 £1.10
9	HV506 20 34-03 Available to backorder	Throttle Trigger	£5.52 £4.60
10	HV720 13 10-00 Available to backorder	Parallel Pin	£2.69 £2.24
11	HV506 01 45-06 Available to backorder	Throttle Lockout	£6.47 £5.39
12	HV506 20 36-02 Available to backorder	Chassis	£276.48 £230.40
13	HV501 62 89-09 Available to backorder	Handle Insert	£6.23 £5.19
14	HV724 32 19-05 Available to backorder	Screw	£1.32 £1.10
15	HV503 21 53-16 Available to backorder	Screw Itxscm	£2.06 £1.72
16	HV503 22 65-04 Available to backorder	Square Nut	£2.28 £1.90
17	HV506 20 29-03 Available to backorder	Front Handle	£100.44 £83.70
