Husqvarna K2500 - 968365401 - Blade Guard

Husqvarna K2500 - 968365401 - Blade Guard

Part No. K2500_968365401_YP_926402_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K2500 - 968365401 - Blade Guard

Husqvarna K2500 - 968365401 - Blade Guard

Description

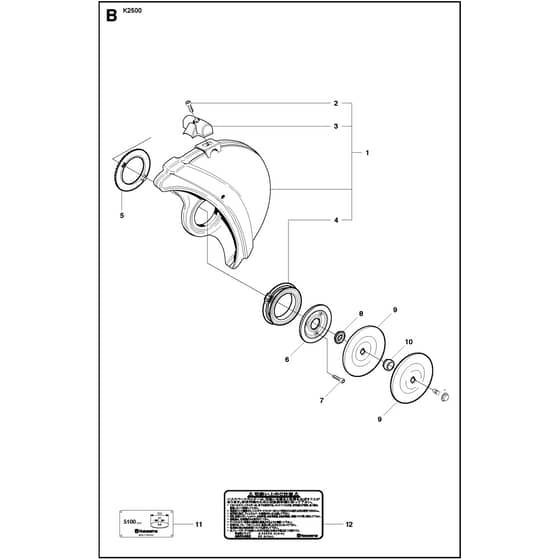

Husqvarna K2500 - 968365401 - Blade Guard - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV506 34 05-46 Available to backorder	Blade Guard (Incl. 2 - 4)		£186.72 £155.60
	2		HV503 21 53-20 Available to backorder	Screw Itxscm		£2.23 £1.86
	3		HV506 34 46-02 Available to backorder	Handle		£5.98 £4.98
	4		HV506 26 63-02 Available to backorder	Lining		£14.32 £11.93
	5		HV506 26 64-01 Available to backorder	Screen		£5.52 £4.60
	6		HV506 26 65-01 Available to backorder	Flange		£6.72 £5.60
	7		HV505 57 41-16 Available to backorder	Screw Itxscm (New Part)		£1.94 £1.62
	8		HV506 32 48-01 Available to backorder	Support Flange		£12.56 £10.47
	9		HV506 02 87-01 Available to backorder	Flange Washer (Diam 105mm)		£30.80 £25.67
	9		HV506 07 09-03 Available to backorder	Flange Washer (Diam 119mm)		£33.22 £27.68
	10		HV581 60 54-04 Available to backorder	Bushing (Diam 30.5mm)		£14.59 £12.16
	10		HV578 39 82-01 Available to backorder	Bushing (Diam 25.4mm)		£16.24 £13.53
	10		HV506 37 96-01 Available to backorder	Bushing (Diam 20mm)		£11.20 £9.33
	10		HV506 37 96-22 Available to backorder	Bushing (Diam 22.2mm)		£16.68 £13.90
	11		HV506 28 41-22 Available to backorder	Label (Diam 20mm)		£4.50 £3.75
	11		HV506 28 41-24 Available to backorder	Label (Diam 25.4mm)		£3.46 £2.88

Description

Husqvarna K2500 - 968365401 - Blade Guard - Parts Diagram
