Husqvarna K2500 - 968365401 - Belt Guard And Pulley

Name: Husqvarna K2500 - 968365401 - Belt Guard And Pulley
SKU: K2500_968365401_DY_066846_HighResPng-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K2500 - 968365401 - Belt Guard And Pulley

Description

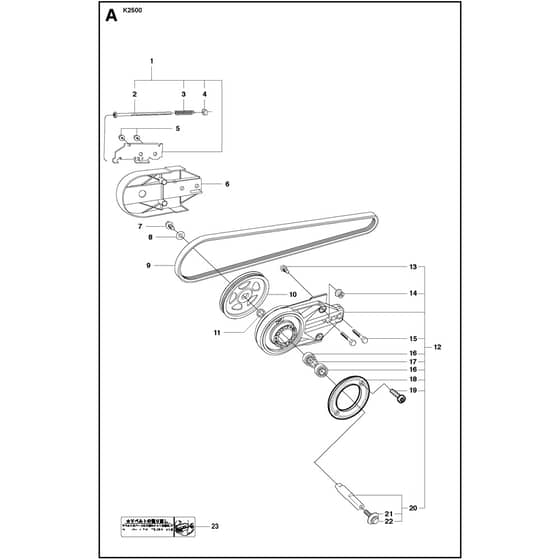

Husqvarna K2500 - 968365401 - Belt Guard And Pulley - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV506 03 06-03 Available to backorder	Belt Tensioner Assy (Incl. 2 - 4 (New Part))	£23.34 £19.45
2	HV503 20 72-20 Available to backorder	Screw Citxscm (New Part)	£10.76 £8.97
3	HV506 21 95-01 Available to backorder	Compression Spring	£3.08 £2.57
4	HV503 22 66-01 Available to backorder	Square Nut	£2.94 £2.45
5	HV503 22 00-01 In stock	Hexagon Nut	£2.65 £2.21
6	HV506 09 87-02 Available to backorder	Belt Guard	£16.12 £13.43
7	HV503 20 00-45 Available to backorder	Screw Ehhfm	£4.02 £3.35
8	HV503 23 01-16 Available to backorder	Washer	£1.34 £1.12
9	HV544 97 63-03 Available to backorder	Drive Belt	£34.82 £29.02
10	HV578 11 05-01 Available to backorder	Pulley	£30.46 £25.38
11	HV503 23 01-04 Available to backorder	Washer	£2.60 £2.17
12	HV506 41 34-04 Available to backorder	Bearing Housing Assy (Incl. 13 - 20 (New Part))	£84.40 £70.33
13	HV505 57 41-16 Available to backorder	Screw Itxscm (New Part)	£2.00 £1.67
14	HV506 14 32-01 Available to backorder	Nut Cap (New Part)	£9.20 £7.67
15	HV506 03 32-02 Available to backorder	Screw	£4.80 £4.00
16	HV583 95 33-01 Available to backorder	Ball Bearing	£15.96 £13.30
17	HV506 20 18-01 Available to backorder	Spacing Sleeve	£13.39 £11.16
18	HV506 28 84-01 Available to backorder	Screen	£5.68 £4.73
19	HV503 21 53-10 Available to backorder	Screw Itxscm (New Part)	£2.16 £1.80
20	HV506 29 83-71 Available to backorder	Shaft (Incl. 21 - 22)	£57.82 £48.18
22	HV581 85 52-01 Available to backorder	Screw	£17.66 £14.72
23	HV506 30 97-05 Available to backorder	Label (Japan only (New Part))	£4.02 £3.35
