Husqvarna K1270RAIL - Rail

Name: Husqvarna K1270RAIL - Rail
SKU: k1270rail_rail-group
Price: 1.12 GBP
Availability: InStock

Part No. k1270rail_rail-group

Description

Husqvarna K1270RAIL

Model Year - - 2016-07

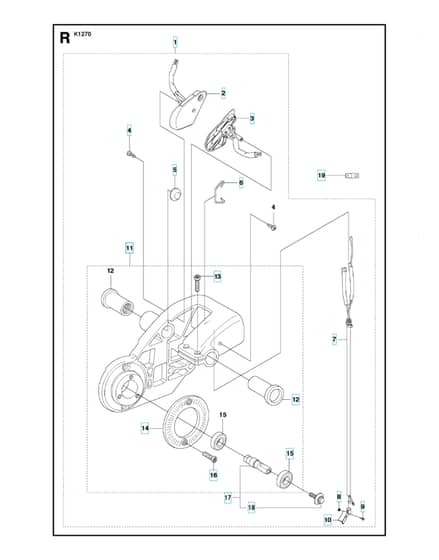

Rail - Parts Diagram

	Part No.	Details
1	HV576 66 57-02 Available to backorder	Bearing Housing Assy"14"" Rail Stop Switch."	£574.36 £478.63
2	HV506 35 91-04 Available to backorder	Stop Switchrh	£61.73 £51.44
3	HV506 35 91-03 Available to backorder	Stop Switchlh	£91.56 £76.30
5	HV506 35 96-01 Available to backorder	Spacing Block	£11.47 £9.56
7	HV506 35 90-01 Available to backorder	Wiring	£81.84 £68.20
8	HV732 25 12-01 Available to backorder	Hexagon Locking Nut	£1.34 £1.12
9	HV724 12 87-59 In stock	Screw Crpanm	£1.96 £1.63
10	HV506 35 80-01 Available to backorder	Bracket	£6.10 £5.08
11	HV576 66 57-01 Available to backorder	Bearing Housing Assy"14"" Rail. "	£463.63 £386.36
12	HV506 22 75-01 Available to backorder	Sleeve	£78.36 £65.30
14	HV506 28 84-01 Available to backorder	Screen	£5.52 £4.60
15	HV583 95 33-01 Available to backorder	Ball Bearing	£15.48 £12.90
16	HV503 21 53-10 Available to backorder	Screw Itxscm	£2.23 £1.86
17	HV588 99 24-01 Available to backorder	Shaftincl. 18	£37.42 £31.18
18	HV590 50 38-01 In stock	Screw	£15.24 £12.70
19	HV535 03 94-01 Available to backorder	Connection	£1.79 £1.49
