Husqvarna K1270RAIL - Guards

Name: Husqvarna K1270RAIL - Guards
SKU: k1270rail_guards-group
Price: 1.1 GBP
Availability: InStock

Part No. k1270rail_guards-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna K1270RAIL

Model Year - - 2016-07

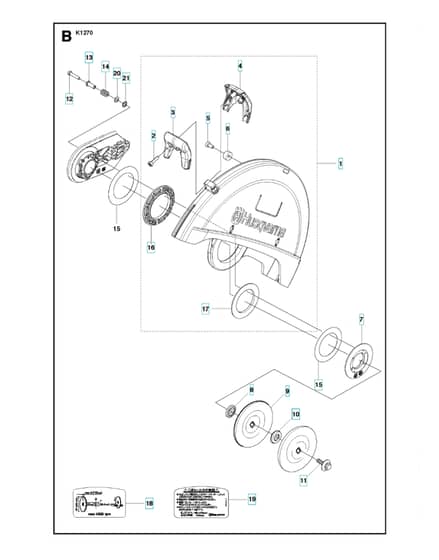

Guards - Parts Diagram

	Part No.	Details
1	HV581 35 19-10 Available to backorder	Wheel Guard"14"""	£152.88 £127.40
1	HV581 35 19-09 Available to backorder	Wheel Guard"16"""	£160.56 £133.80
2	HV504 90 94-14 Available to backorder	Screw Itxsct	£1.79 £1.49
3	HV578 19 09-01 Available to backorder	Handle Half	£7.74 £6.45
4	HV578 76 09-01 Available to backorder	Handle Half	£7.44 £6.20
5	HV504 90 94-10 Available to backorder	Screw Itxsct	£1.32 £1.10
6	HV581 62 03-01 Available to backorder	Stop	£15.06 £12.55
7	HV584 43 77-01 Available to backorder	Disc	£33.23 £27.69
8	HV584 43 83-01 Available to backorder	Support Flange	£10.90 £9.08
9	HV583 87 44-02 Available to backorder	Flangediam 105mm	£5.40 £4.50
9	HV506 07 09-04 Available to backorder	Flange Washer"Diam 119mm. Japan 14""/16"""	£15.31 £12.76
10	HV581 60 54-04 Available to backorder	Bushingdiam 30.5mm	£14.59 £12.16
11	HV590 50 38-01 In stock	Screw	£15.24 £12.70
12	HV544 21 84-30 Available to backorder	Screw Itxscm	£1.97 £1.64
13	HV584 43 82-01 Available to backorder	Sleeve"14"". Shiny"	£6.85 £5.71
13	HV584 43 82-02 Available to backorder	Sleeve"16"". Black"	£8.06 £6.72
14	HV584 43 81-01 Available to backorder	Spring	£7.00 £5.83
15	HV584 43 78-01 Available to backorder	Shim	£14.59 £12.16
16	HV584 43 79-01 Available to backorder	Lining	£16.55 £13.79
17	HV584 43 80-01 Available to backorder	Lining	£9.11 £7.59
18	HV581 11 77-07 Available to backorder	Decal"16"""	£4.18 £3.48
19	HV584 99 26-02 Available to backorder	Decal"14"". Jp"	£3.43 £2.86
20	HV582 23 31-01 Available to backorder	Washer	£2.24 £1.87
21	HV582 23 32-01 Available to backorder	Washer	£2.24 £1.87
