Husqvarna K1270RAIL - Cylinder, Piston & Muffler

Description

Husqvarna K1270RAIL

Model Year - - 2016-07

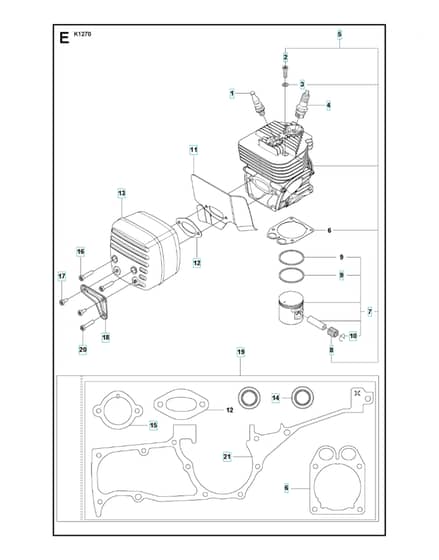

Cylinder, Piston & Muffler - Parts Diagram

	Part No.	Details
1	HV584 91 22-04 Available to backorder	Decompression Valve	£32.95 £27.46
2	HV516 00 24-01 Available to backorder	Screw Unc	£2.69 £2.24
3	HV503 23 00-05 Available to backorder	Washer	£2.30 £1.92
6	HV546 93 13-01 Available to backorder	Gasket	£8.86 £7.38
7	HV587 82 98-06 Available to backorder	Piston Assyincl. 9 - 10	£119.64 £99.70
8	HV503 13 29-01 Available to backorder	Needle Holder	£25.03 £20.86
10	HV737 44 13-00 Available to backorder	Circlip	£0.77 £0.64
11	HV587 53 63-01 Available to backorder	Heat Deflector	£17.30 £14.42
13	HV505 41 79-05 Available to backorder	Muffler Assyincl. 14 - 15	£107.76 £89.80
14	HV503 26 02-05 Available to backorder	Sealing Ring	£8.32 £6.93
17	HV503 21 53-12 Available to backorder	Screw Itxscm	£1.79 £1.49
18	HV502 85 08-01 Available to backorder	Support	£11.35 £9.46
19	HV582 45 48-02 Available to backorder	Gasket Kit	£19.39 £16.16
20	HV544 21 84-20 Available to backorder	Screw Itxscm	£2.47 £2.06
