Husqvarna K1270RAIL - Belt Guard & Pulley

Husqvarna K1270RAIL - Belt Guard & Pulley

Part No. k1270rail_belt_guard_pulley-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K1270RAIL - Belt Guard & Pulley

Husqvarna K1270RAIL - Belt Guard & Pulley

Description

Husqvarna K1270RAIL

Model Year - - 2016-07

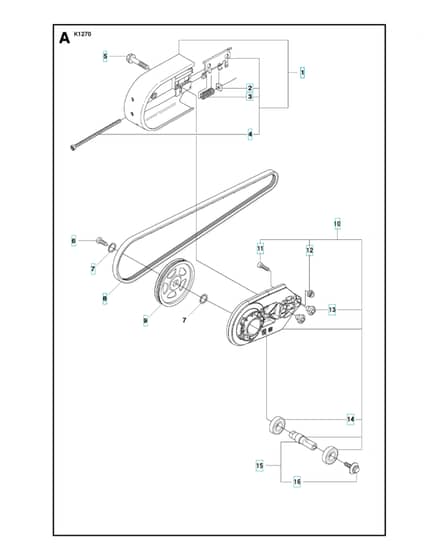

Belt Guard & Pulley - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV503 21 53-12 Available to backorder	Screw Itxscm		£1.79 £1.49
	2		HV503 21 54-20 Available to backorder	Screw Itxsct		£2.23 £1.86
	3		HV521 95 48-01 Available to backorder	Handle		£96.12 £80.10
	4		HV501 26 97-05 Available to backorder	Antivibration Element		£9.62 £8.02
	5		HV544 21 84-47 Available to backorder	Screw Itxscm		£6.10 £5.08
	6		HV525 82 04-02 Available to backorder	Ground Supportincl. 7 - 9		£129.00 £107.50
	7		HV544 81 16-01 Available to backorder	Base		£5.82 £4.85
	8		HV734 11 47-41 Available to backorder	Washer		£2.30 £1.92
	9		HV504 90 94-14 Available to backorder	Screw Itxsct		£1.79 £1.49
	10		HV503 26 60-03 Available to backorder	Couplerusa. Canada		£10.13 £8.44
	10		HV503 26 60-04 Available to backorder	Coupler		£7.80 £6.50

Description

Husqvarna K1270RAIL

Model Year - - 2016-07

Belt Guard & Pulley - Parts Diagram
