Husqvarna K1260RAIL - Housing

Name: Husqvarna K1260RAIL - Housing
SKU: k1260rail_housing-group
Price: 1.14 GBP
Availability: InStock

Description

Husqvarna K1260RAIL

Model Year - - 2010-10

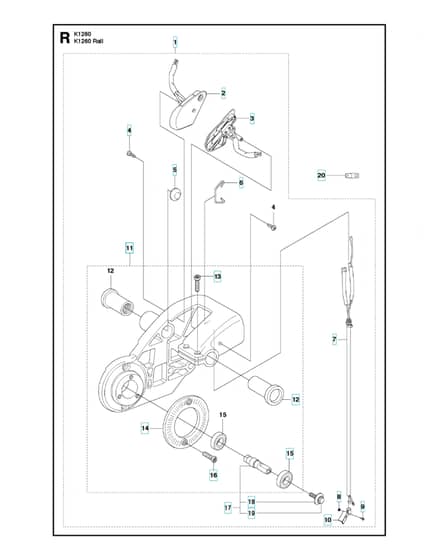

Housing - Parts Diagram

	Part No.	Details
1	HV576 66 57-02 Available to backorder	Bearing Housing Assy"14"" Rail Stop Switch. Incl. 2 - 11"	£649.20 £541.00
2	HV506 35 91-04 Available to backorder	Stop Switchrh	£63.54 £52.95
3	HV506 35 91-03 Available to backorder	Stop Switchlh	£97.44 £81.20
5	HV506 35 96-01 Available to backorder	Spacing Block	£11.82 £9.85
7	HV506 35 90-01 Available to backorder	Wiring	£87.16 £72.63
8	HV732 25 12-01 Available to backorder	Hexagon Locking Nut	£1.37 £1.14
9	HV724 12 87-59 Available to backorder	Screw Crpanm	£1.82 £1.52
10	HV506 35 80-01 Available to backorder	Bracket	£6.28 £5.23
11	HV576 66 57-01 Available to backorder	Bearing Housing Assy"14"" Rail. Incl. 12 - 17"	£532.80 £444.00
12	HV506 22 75-01 Available to backorder	Sleeve	£83.46 £69.55
14	HV506 28 84-01 Available to backorder	Screen	£5.68 £4.73
15	HV503 25 21-01 Available to backorder	Ball Bearing	£24.24 £20.20
16	HV503 21 53-10 Available to backorder	Screw Itxscm	£2.16 £1.80
17	HV506 29 83-65 Available to backorder	Shaftincl. 18 - 19	£67.36 £56.13
20	HV535 03 94-01 Available to backorder	Connection	£1.84 £1.53
