Husqvarna K1260RAIL - Carburetor

Part No. k1260rail_carburetor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K1260RAIL - Carburetor

Husqvarna K1260RAIL - Carburetor

Description

Husqvarna K1260RAIL

Model Year - - 2010-10

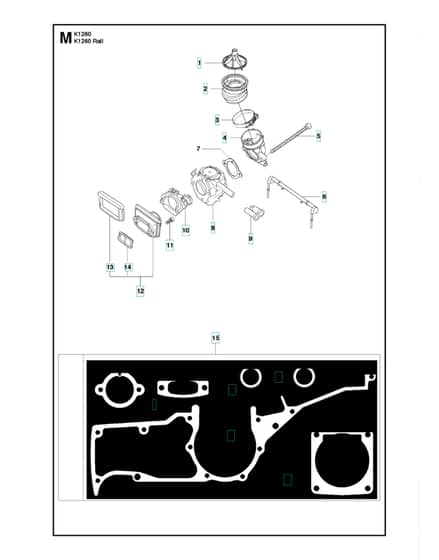

Carburetor - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV510 24 39-01 Available to backorder	Filter		£4.75 £3.96
	3		HV505 28 33-07 Available to backorder	Hose Clamp		£1.94 £1.62
	4		HV510 24 37-01 Available to backorder	Inlet		£8.94 £7.45
	5		HV504 90 94-65 Available to backorder	Screw Itxsct		£2.86 £2.38
	6		HV506 25 04-01 Available to backorder	Support		£12.37 £10.31
	7		HV579 85 11-01 Available to backorder	Gasket		£4.14 £3.45
	9		HV506 25 46-01 Available to backorder	Chisel Guide		£5.10 £4.25
	10		HV506 28 97-01 Available to backorder	Flange		£14.04 £11.70
	11		HV503 21 53-20 Available to backorder	Screw Itxscm		£2.23 £1.86
	12		HV506 27 52-02 Available to backorder	Flangeincl. 13 - 14		£46.06 £38.38
	13		HV503 14 37-01 Available to backorder	Sealing		£8.51 £7.09
	14		HV506 31 38-01 Available to backorder	Insert		£3.90 £3.25
	15		HV506 29 24-03 Available to backorder	Gasket Kitincl. 7. 16 - 19		£9.08 £7.57
	17		HV503 26 02-05 Available to backorder	Sealing Ring		£8.32 £6.93
	18		HV503 13 45-01 Available to backorder	Crankcase		£5.03 £4.19
	19		HV503 13 46-01 Available to backorder	Gasket		£5.69 £4.74

Description

Husqvarna K1260RAIL

Model Year - - 2010-10

Carburetor - Parts Diagram
