Husqvarna K1260RAIL - Belt Guard & Pulley

Husqvarna K1260RAIL - Belt Guard & Pulley

Part No. k1260rail_belt_guard_pulley-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K1260RAIL - Belt Guard & Pulley

Husqvarna K1260RAIL - Belt Guard & Pulley

Description

Husqvarna K1260RAIL

Model Year - - 2010-10

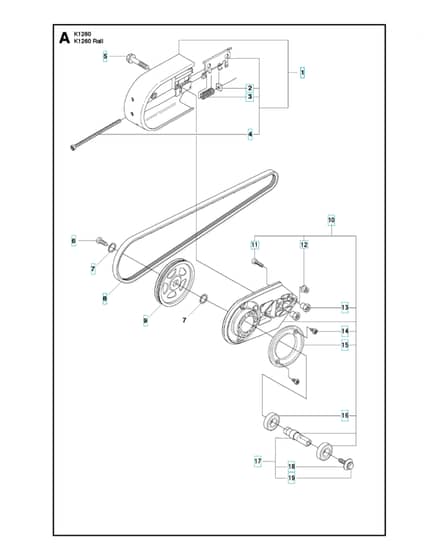

Belt Guard & Pulley - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV506 27 92-07 Available to backorder	Belt Guard"Rail 14"". Incl. 2 - 4"		£52.84 £44.03
	1		HV506 27 92-06 Available to backorder	Belt Guardincl. 2 - 4		£52.32 £43.60
	1		HV506 27 92-13 Available to backorder	Belt Guard"Rail 16"". Incl. 2 - 4"		£72.48 £60.40
	2		HV506 40 93-01 Available to backorder	Nut		£2.69 £2.24
	3		HV506 26 68-01 Available to backorder	Compression Spring		£4.75 £3.96
	4		HV503 20 72-05 Available to backorder	Screw Citxscm		£5.82 £4.85
	6		HV503 20 00-45 Available to backorder	Screw Ehhfm		£4.18 £3.48
	7		HV503 23 01-04 Available to backorder	Washer		£2.54 £2.12
	8		HV544 97 63-01 In stock	Belt"14"". 16"". Rail 14"""		£36.43 £30.36
	8		HV544 97 63-02 Available to backorder	Belt"Rail 16"""		£35.64 £29.70
	9		HV544 98 50-01 Available to backorder	Pulley		£30.26 £25.22
	11		HV505 57 41-16 Available to backorder	Screw Itxscm		£1.94 £1.62
	12		HV506 14 32-01 Available to backorder	Nut Cap		£8.94 £7.45
	13		HV506 28 73-01 Available to backorder	Nut		£9.54 £7.95
	14		HV503 21 53-10 Available to backorder	Screw Itxscm		£2.23 £1.86
	15		HV506 28 84-01 Available to backorder	Screen		£5.52 £4.60
	16		HV503 25 21-01 Available to backorder	Ball Bearing		£25.08 £20.90
	17		HV506 29 83-65 Available to backorder	Shaftincl. 18 - 19		£63.24 £52.70

Description

Husqvarna K1260RAIL

Model Year - - 2010-10

Belt Guard & Pulley - Parts Diagram
