Husqvarna K1250 - Cylinder

Part No. k1250_cylinder-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K1250 - Cylinder

Husqvarna K1250 - Cylinder

Description

Husqvarna K1250

Model Year - - 2008-01

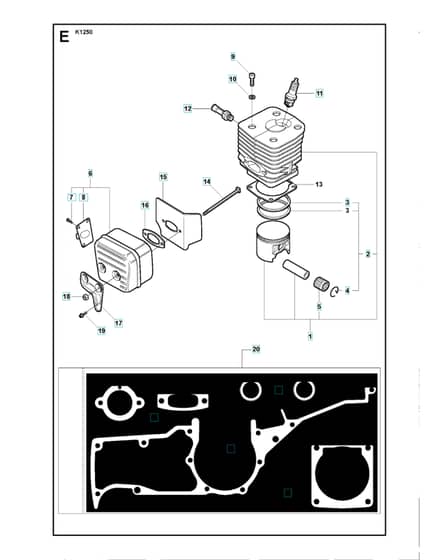

Cylinder - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV576 27 00-03 Available to backorder	Cylinder		£446.28 £371.90
	1		1391 In stock	Non-Gen Cylinder		£38.76 £32.30
	2		HV501 89 41-03 Available to backorder	Piston Assy		£148.08 £123.40
	3		HV503 28 90-26 In stock	Piston Ring		£12.72 £10.60
	4		HV737 44 13-00 Available to backorder	Circlip		£0.77 £0.64
	5		HV503 13 29-01 Available to backorder	Needle Holder		£25.03 £20.86
	6		HV588 13 78-03 Available to backorder	Muffler Assy		£112.80 £94.00
	7		HV729 53 40-01 Available to backorder	Screw Ccrpant		£1.56 £1.30
	8		HV506 27 49-01 Available to backorder	Exhaust Duct		£21.78 £18.15
	9		HV503 21 60-25 Available to backorder	Screw		£2.83 £2.36
	10		HV503 23 00-05 Available to backorder	Washer		£2.30 £1.92
	12		HV503 66 56-01 Available to backorder	Decompression Valve		£17.32 £14.43
	13		HV503 13 46-01 Available to backorder	Gasket		£5.69 £4.74
	15		HV506 34 14-01 Available to backorder	Cooling Air Conductor		£11.03 £9.19
	16		HV503 13 13-05 Available to backorder	Gasket		£9.56 £7.97
	18		HV503 22 20-07 Available to backorder	Lock Nut		£2.66 £2.22
	19		HV725 53 68-55 Available to backorder	Screw Ihscm		£2.35 £1.96
	20		HV506 29 24-02 Available to backorder	Gasket Kit		£19.01 £15.84
	22		HV503 13 45-01 Available to backorder	Crankcase		£5.03 £4.19
	23		HV503 26 02-05 Available to backorder	Sealing Ring		£8.32 £6.93

Description

Husqvarna K1250

Model Year - - 2008-01

Cylinder - Parts Diagram
