Husqvarna K1250 - Controls

Part No. k1250_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K1250 - Controls

Husqvarna K1250 - Controls

Description

Husqvarna K1250

Model Year - - 2008-01

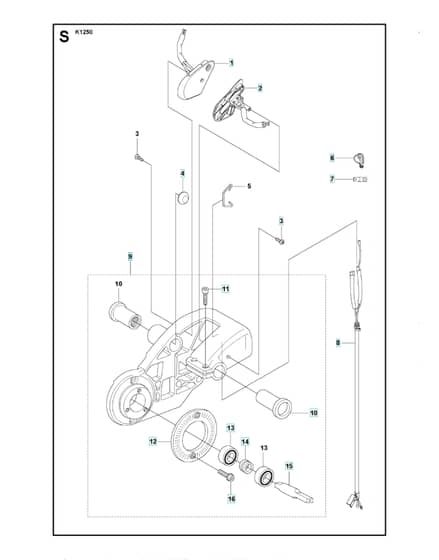

Controls - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV506 35 91-04 Available to backorder	Stop Switchlh		£61.73 £51.44
	2		HV506 35 91-03 Available to backorder	Stop Switchrh		£91.56 £76.30
	3		HV729 53 27-71 Available to backorder	Screw Crpant		£1.56 £1.30
	4		HV506 35 96-01 Available to backorder	Spacing Block		£11.47 £9.56
	7		HV535 03 94-01 Available to backorder	Connection		£1.79 £1.49
	8		HV506 35 90-01 Available to backorder	Wiring		£81.84 £68.20
	9		HV544 88 75-04 Available to backorder	Bearing Housing"Rail 16"""		£597.61 £498.01
	10		HV506 22 75-01 Available to backorder	Sleeve		£78.36 £65.30
	12		HV506 28 84-01 Available to backorder	Screen		£5.52 £4.60
	13		HV503 25 21-01 Available to backorder	Ball Bearing		£25.08 £20.90
	14		HV506 07 08-01 Available to backorder	Spacing Sleeve		£9.85 £8.21
	15		HV506 29 83-63 Available to backorder	Shaft		£43.66 £36.38

Description

Husqvarna K1250

Model Year - - 2008-01

Controls - Parts Diagram
