Husqvarna K1250 - Belt Guard & Pulley 3

Part No. k1250_belt_guard_pulley_3-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K1250 - Belt Guard & Pulley 3

Husqvarna K1250 - Belt Guard & Pulley 3

Description

Husqvarna K1250

Model Year - - 2008-01

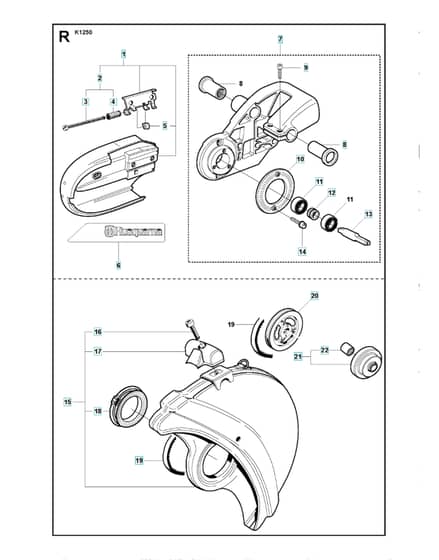

Belt Guard & Pulley 3 - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV506 27 92-04 Available to backorder	Belt Guard"Rail 16"""		£30.56 £25.47
	3		HV503 20 30-11 Available to backorder	Screw Slchm		£5.82 £4.85
	4		HV506 26 68-01 Available to backorder	Compression Spring		£4.75 £3.96
	5		HV503 22 66-01 Available to backorder	Square Nut		£2.86 £2.38
	6		HV544 87 36-01 Available to backorder	Label		£6.55 £5.46
	8		HV506 22 75-01 Available to backorder	Sleeve		£78.36 £65.30
	10		HV506 28 84-01 Available to backorder	Screen		£5.52 £4.60
	11		HV503 25 21-01 Available to backorder	Ball Bearing		£25.08 £20.90
	13		HV506 07 08-01 Available to backorder	Spacing Sleeve		£9.85 £8.21
	14		HV506 29 83-63 Available to backorder	Shaft		£43.66 £36.38
	17		HV506 34 46-02 Available to backorder	Handle		£5.98 £4.98
	18		HV506 26 63-02 Available to backorder	Lining		£14.32 £11.93
	19		HV506 37 27-28 Available to backorder	Belt"Rail 16"""		£31.82 £26.52
	20		HV506 07 18-02 Available to backorder	Pulley		£36.68 £30.57
	21		HV506 25 49-03 Available to backorder	Gear Wheel Assy"Rail 16"""		£121.44 £101.20
	22		HV503 25 38-01 Available to backorder	Needle Bearing		£23.40 £19.50

Description

Husqvarna K1250

Model Year - - 2008-01

Belt Guard & Pulley 3 - Parts Diagram
