Husqvarna K1 PACE - 970445803 - Cutter Arm

Name: Husqvarna K1 PACE - 970445803 - Cutter Arm
SKU: K1_PACE_970445803_BO_229586_HighResPng-group
Price: 0.75 GBP
Availability: InStock

Part No. K1_PACE_970445803_BO_229586_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K1 PACE - 970445803 - Cutter Arm

Description

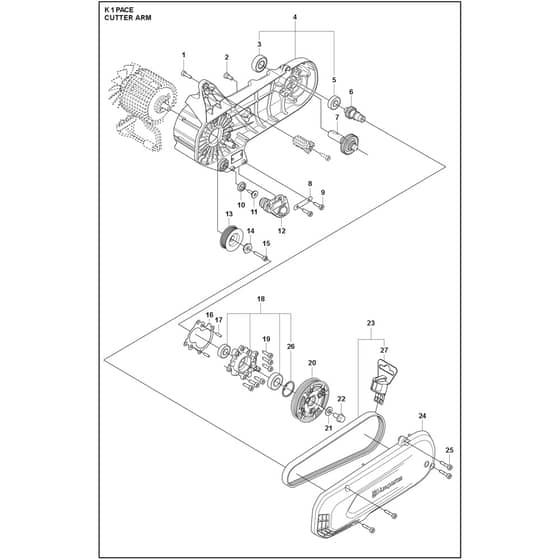

Husqvarna K1 PACE - 970445803 - Cutter Arm - Parts Diagram

	Part No.	Details
1	HV503 21 54-20 Available to backorder	Screw Itxsct	£2.23 £1.86
2	HV584 99 43-01 Available to backorder	Screw	£1.34 £1.12
3	HV738 22 02-19 Available to backorder	Ball Bearing	£8.71 £7.26
4	HV531 33 30-01 Available to backorder	Cutter Arm	£90.84 £75.70
5	HV590 52 58-01 Available to backorder	Ball Bearing	£6.29 £5.24
6	HV593 77 30-01 Available to backorder	Shaft	£103.20 £86.00
7	HV597 73 67-01 Available to backorder	Shaft	£71.28 £59.40
8	HV522 47 48-01 Available to backorder	Plate	£1.94 £1.62
9	HV503 21 53-16 Available to backorder	Screw Itxscm	£2.06 £1.72
10	HV546 26 18-01 Available to backorder	Bushing	£10.31 £8.59
11	HV526 83 45-01 Available to backorder	Screw	£1.67 £1.39
12	HV598 58 69-01 In stock	Spring Retainer	£35.48 £29.57
13	HV597 73 66-02 Available to backorder	Pulley (Pulley 12")	£52.16 £43.47
13	HV597 73 66-01 Available to backorder	Pulley (Pulley 14")	£52.16 £43.47
14	HV504 03 83-02 Available to backorder	Spacing Sleeve	£18.41 £15.34
15	HV544 21 84-20 Available to backorder	Screw Itxscm	£2.47 £2.06
16	HV597 73 69-01 Available to backorder	Gasket	£4.34 £3.62
17	HV593 80 60-01 In stock	Guide Bushing	Was £5.60 £4.67 Special Price £1.80 £1.50
18	HV531 33 31-02 Available to backorder	Lid	£42.43 £35.36
19	HV503 21 53-20 Available to backorder	Screw Itxscm	£2.23 £1.86
20	HV590 89 58-01 In stock	Pulley	£25.43 £21.19
21	HV503 23 01-16 Available to backorder	Washer	£1.32 £1.10
22	HV503 20 00-45 Available to backorder	Screw Ehhfm	£4.18 £3.48
23	HV529 95 96-02 Available to backorder	Drive Belt (Belt Kit 12")	£26.40 £22.00
23	HV529 95 96-01 Available to backorder	Drive Belt (Belt Kit 14")	£27.80 £23.17
24	HV599 47 46-01 Available to backorder	Belt Guard	£148.44 £123.70
25	HV503 21 53-26 Available to backorder	Screw Itxscm	£1.94 £1.62
26	HV735 31 33-10 Available to backorder	Circlip	£0.90 £0.75
27	HV596 55 26-02 Available to backorder	Service Tools	£4.61 £3.84
