Husqvarna K 1270 - 967978701 - Fuel Tank

Name: Husqvarna K 1270 - 967978701 - Fuel Tank
SKU: K_1270_967978701_XT_039687_HighResPng-group
Price: 1.04 GBP
Availability: InStock

Part No. K_1270_967978701_XT_039687_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K 1270 - 967978701 - Fuel Tank

Description

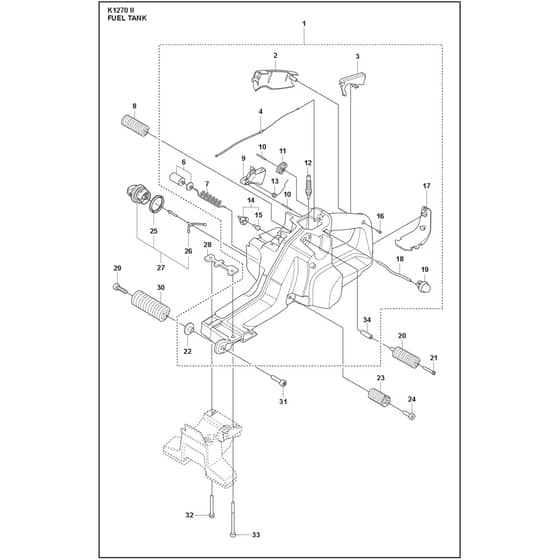

Husqvarna K 1270 - 967978701 - Fuel Tank - Parts Diagram

	Part No.	Details
1	HV598 80 64-04 Available to backorder	Fuel Tank	£140.52 £117.10
2	HV537 20 56-01 Available to backorder	Cover	£9.12 £7.60
3	HV510 25 52-01 Available to backorder	Throttle Lockout	£7.16 £5.97
4	HV596 92 77-01 Available to backorder	Throttle Cable Assy	£34.28 £28.57
6	HV598 83 66-01 In stock	Fuel Filter Kit	£8.59 £7.16
7	HV581 75 62-03 In stock	Fuel Hose	£10.27 £8.56
8	HV585 22 63-01 Available to backorder	Antivibration Element	£16.55 £13.79
9	HV502 47 18-03 Available to backorder	Throttle Control	£5.74 £4.78
11	HV537 20 85-01 Available to backorder	Lever	£7.06 £5.88
12	HV576 13 99-01 Available to backorder	Fuel Hose	£5.08 £4.23
13	HV537 20 98-01 Available to backorder	Spring	£3.29 £2.74
14	HV598 61 10-01 Available to backorder	Tank Vent Assy	£14.46 £12.05
15	HV501 15 29-01 In stock	Tank Vent Assy	£17.90 £14.92
16	HV525 88 74-02 In stock	Screw Citxpant	£1.25 £1.04
17	HV588 19 82-01 Available to backorder	Ground Support	£6.55 £5.46
18	HV537 04 24-19 Available to backorder	Fuel Hose	£5.74 £4.78
19	HV540 05 49-01 Available to backorder	Purge	£6.29 £5.24
20	HV585 22 64-01 Available to backorder	Antivibration Element	£16.55 £13.79
21	HV544 21 84-20 Available to backorder	Screw Itxscm	£2.47 £2.06
22	HV503 14 08-01 Available to backorder	Bushing	£8.64 £7.20
23	HV537 21 03-05 Available to backorder	Antivibration Element	£18.22 £15.18
24	HV544 06 12-01 Available to backorder	Screw Itxscm	£2.23 £1.86
25	HV537 21 50-01 Available to backorder	Gasket	£5.32 £4.43
26	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
27	HV522 62 00-01 Available to backorder	Tank Cap Assy	£8.68 £7.23
27	HV522 62 00-01-1 Available to backorder	Tank Cap Assy	£7.00 £5.83
28	HV582 39 57-01 Available to backorder	Attachment Plate	£54.00 £45.00
29	HV503 21 53-20 Available to backorder	Screw Itxscm	£2.23 £1.86
30	HV503 13 27-02 Available to backorder	Antivibration Element	£45.18 £37.65
31	HV503 21 53-25 In stock	Screw Itxscm	£3.59 £2.99
32	HV525 75 52-04 Available to backorder	Screw Itxscfm	£2.83 £2.36
33	HV503 21 53-75 Available to backorder	Screw	£3.46 £2.88
34	HV503 13 49-01 Available to backorder	Spacing Tube	£1.40 £1.17
