Husqvarna K 1270 - 967978701 - Cylinder, Piston And Muffler

Name: Husqvarna K 1270 - 967978701 - Cylinder, Piston And Muffler
SKU: K_1270_967978701_HY_451659-group
Price: 0.64 GBP
Availability: InStock

Part No. K_1270_967978701_HY_451659-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K 1270 - 967978701 - Cylinder, Piston And Muffler

Description

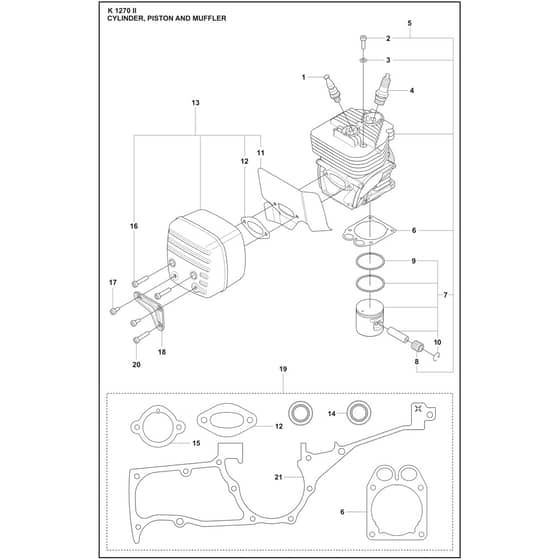

Husqvarna K 1270 - 967978701 - Cylinder, Piston And Muffler - Parts Diagram

	Part No.	Details
1	HV584 91 22-04 Available to backorder	Decompression Valve	£32.95 £27.46
2	HV516 00 24-01 Available to backorder	Screw	£2.69 £2.24
3	HV503 23 00-05 Available to backorder	Washer	£2.30 £1.92
4	HV503 23 51-11 In stock	Spark Plug	£2.80 £2.33

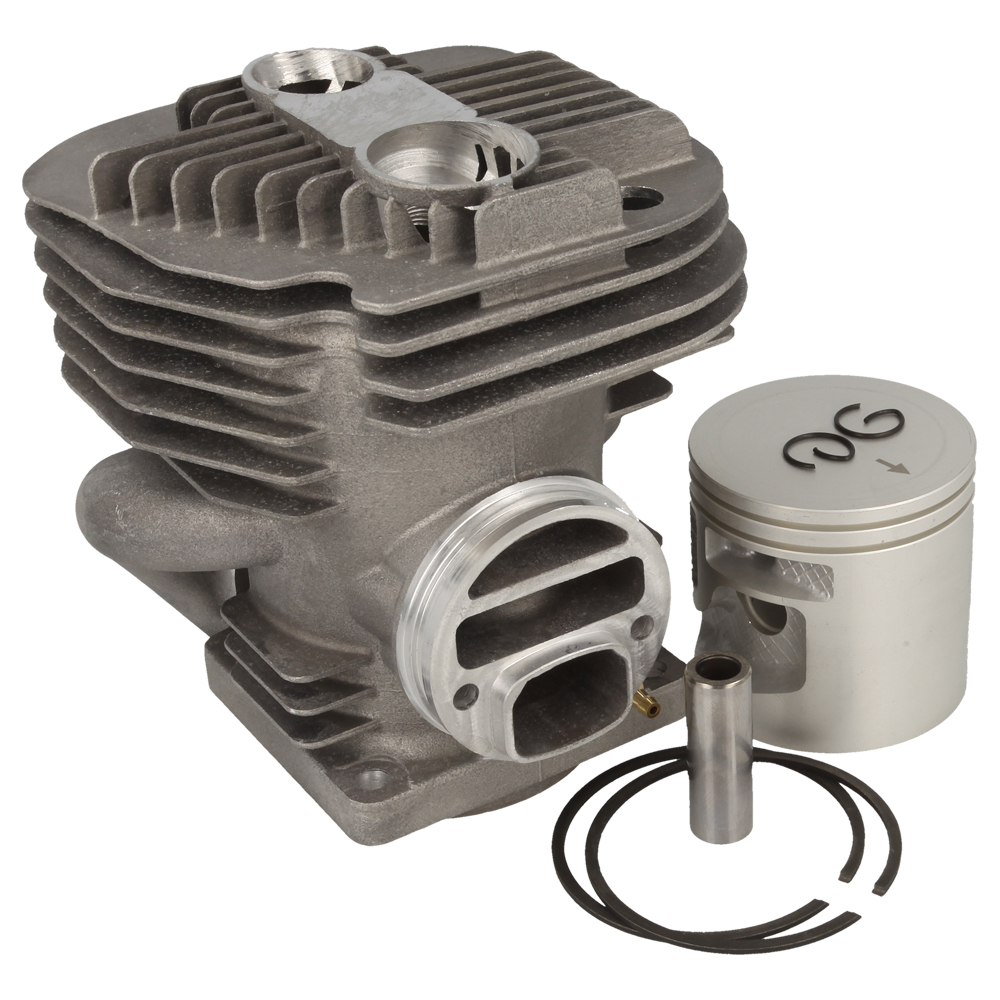

5	1017 Out of stock	Cylinder Assy	£31.08 £25.90
6	HV546 93 13-01 Available to backorder	Gasket	£8.86 £7.38
7	HV587 82 98-06 Available to backorder	Piston Assy	£119.64 £99.70
8	HV503 13 29-01 Available to backorder	Needle Holder	£25.03 £20.86
9	HV587 83 00-01 Available to backorder	Piston Ring	£19.72 £16.43
10	HV737 44 13-00 Available to backorder	Circlip	£0.77 £0.64
11	HV587 53 63-01 Available to backorder	Heat Deflector	£17.30 £14.42
13	HV588 13 78-03 Available to backorder	Muffler Kit (RoW)	£112.80 £94.00
14	HV503 26 02-05 Available to backorder	Sealing Ring	£8.32 £6.93
15	HV579 85 11-01 Available to backorder	Gasket	£4.14 £3.45
16	HV544 21 84-07 Available to backorder	Screw Itxscm	£1.43 £1.19
17	HV503 21 53-12 Available to backorder	Screw Itxscm	£1.79 £1.49
18	HV502 85 08-01 Available to backorder	Support	£11.35 £9.46
19	HV582 45 48-02 Available to backorder	Gasket Kit	£19.39 £16.16
20	HV544 21 84-20 Available to backorder	Screw Itxscm	£2.47 £2.06
21	HV582 35 00-01 Available to backorder	Gasket	£6.72 £5.60
