Husqvarna Izc5223 - Chassis & Frame

Husqvarna Izc5223 - Chassis & Frame

Part No. izc5223_chassis_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Izc5223 - Chassis & Frame

Husqvarna Izc5223 - Chassis & Frame

Description

Husqvarna Izc5223

Model Year -

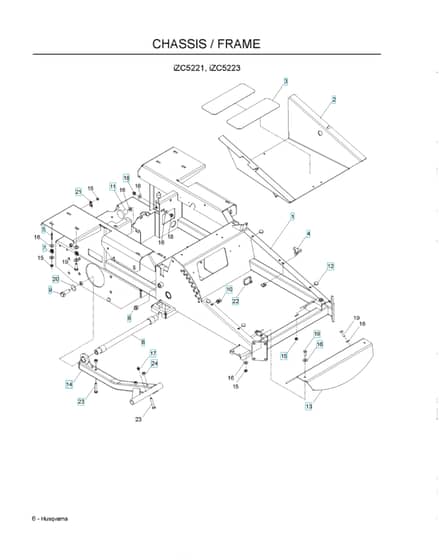

Chassis & Frame - Parts Diagram

Ref.		Img.	Part No.	Details
	12		HV539 10 25-87 Available to backorder	Absorber		£8.56 £7.13
	15		HV539 99 07-17 Available to backorder	Nut		£2.44 £2.03
	17		HV539 97 69-98 Available to backorder	Nipple		£6.01 £5.01
	18		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	19		HV539 99 02-09 Available to backorder	Screw		£4.22 £3.52
	20		HV539 99 03-33 Available to backorder	Washer		£3.77 £3.14
	23		HV539 99 05-88 Available to backorder	Screw		£7.06 £5.88
	24		HV539 97 69-79 Available to backorder	Nut		£2.94 £2.45

Description

Husqvarna Izc5223

Model Year -

Chassis & Frame - Parts Diagram
