Husqvarna Gtvh200 - Mower Lift & Deck Lift

Name: Husqvarna Gtvh200 - Mower Lift & Deck Lift
SKU: gtvh200_1999_03_mower_lift_deck_lift-group
Price: 0.75 GBP
Availability: InStock

Part No. gtvh200_1999_03_mower_lift_deck_lift-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gtvh200 - Mower Lift & Deck Lift

Description

Husqvarna Gtvh200

Model Year - 1999-03

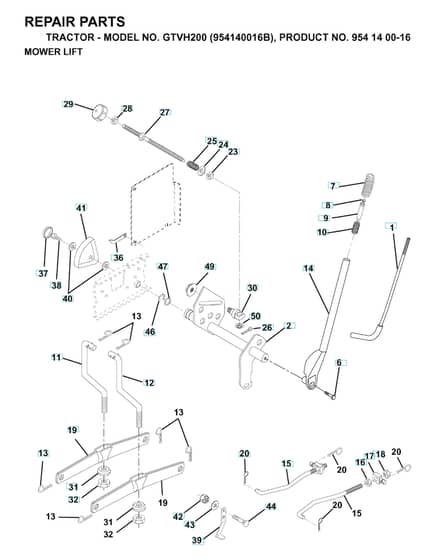

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
7	HV532 12 56-31 Available to backorder	Handle	£12.82 £10.68
11	HV532 14 55-37 Available to backorder	Lift Link	£24.36 £20.30
15	HV532 12 72-18 Available to backorder	Link	£19.88 £16.57
16	HV596 43 34-01 In stock	Nut	Was £3.43 £2.86 Special Price £2.50 £2.08
19	HV532 13 98-68 Available to backorder	Lever	£18.60 £15.50
24	HV819 13 10-16 Available to backorder	Washer	£2.30 £1.92
27	HV532 12 69-71 Available to backorder	Lever	£10.90 £9.08
29	HV532 13 80-57 Available to backorder	Knob	£17.32 £14.43
30	HV532 15 02-33 Available to backorder	Trunnion	£11.66 £9.72
36	HV532 15 50-97 Available to backorder	Indicator	£5.02 £4.18
41	HV532 12 39-34 Available to backorder	Indicator	£5.29 £4.41
42	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
43	HV819 13 16-12 Available to backorder	Washer	£4.63 £3.86
46	HV812 00 00-22 Available to backorder	Retainer Ring	£0.90 £0.75
50	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
