Husqvarna Gtvh200

Model Year - 1999-03

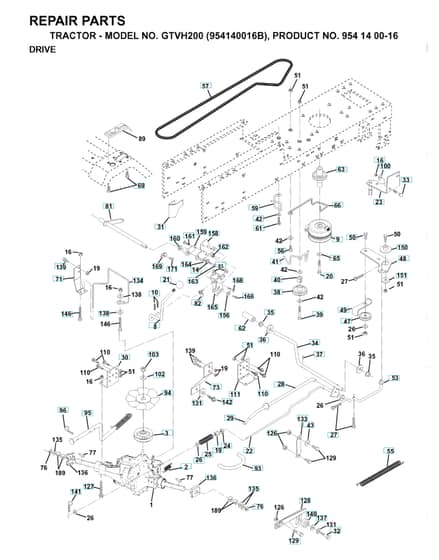

Drive - Parts Diagram

	Part No.	Details
2	HV532 14 24-31 Available to backorder	Spring	£4.50 £3.75
3	HV532 14 39-95 Available to backorder	Pulley	£51.91 £43.26
9	HV532 16 08-89 Available to backorder	Clutch	£308.41 £257.01
10	HV876 02 04-16 Available to backorder	Split Pin	£1.87 £1.56
14	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
16	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
21	HV532 14 08-45 Available to backorder	Knob	£21.16 £17.63
29	HV532 07 16-73 Available to backorder	Cover	£3.65 £3.04
33	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
35	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
36	HV819 21 16-16 Available to backorder	Washer	£2.83 £2.36
40	HV532 12 49-65 Available to backorder	Spacer	£5.51 £4.59
48	HV532 15 44-07 Available to backorder	Guide	£8.45 £7.04
49	HV532 12 32-05 Available to backorder	Belt Guide	£7.06 £5.88
51	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
55	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
65	HV810 04 07-00 Available to backorder	Washer	£3.12 £2.60
69	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
76	HV812 00 00-53 Available to backorder	E-Clip	£0.90 £0.75
94	HV532 14 04-62 Available to backorder	Fan	£13.46 £11.22
139	HV874 78 06-12 Available to backorder	Bolt	£6.29 £5.24
150	HV532 16 58-50 Available to backorder	Bushing	£37.42 £31.18
156	HV532 16 60-02 Available to backorder	Washer	£4.86 £4.05
158	HV532 16 55-89 Available to backorder	Bracket	£8.66 £7.22
162	HV873 68 04-00 Available to backorder	Nut	£2.94 £2.45
168	HV532 16 54-92 Available to backorder	Bolt	£5.02 £4.18
171	HV817 49 06-08 Available to backorder	Screw	£5.24 £4.37
