Husqvarna Gtvh200 - Chassis & Enclosures

Husqvarna Gtvh200 - Chassis & Enclosures

Description

Husqvarna Gtvh200

Model Year - 1999-03

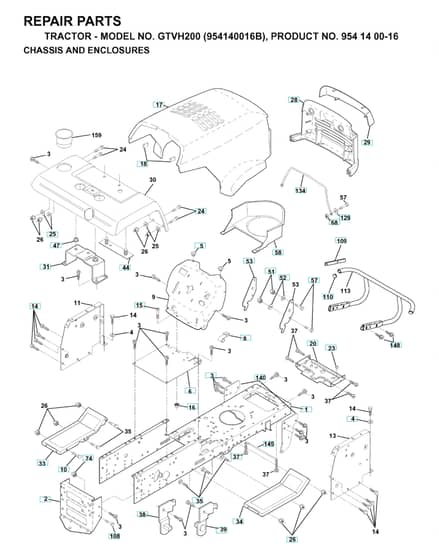

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	8		HV532 12 64-71 Available to backorder	Clip		£0.92 £0.77
	14		HV817 49 06-08 Available to backorder	Screw		£5.32 £4.43
	24		HV874 78 06-16 Available to backorder	Bolt		£6.34 £5.28
	37		HV817 49 05-08 Available to backorder	Screw		£3.62 £3.02
	38		HV532 13 98-86 Available to backorder	Bracket		£8.36 £6.97
	44		HV532 14 06-75 Available to backorder	Strap		£8.40 £7.00
	52		HV819 09 14-16 Available to backorder	Washer		£3.12 £2.60
	74		HV596 32 26-01 Available to backorder	Nut		£3.79 £3.16

Description

Husqvarna Gtvh200

Model Year - 1999-03

Chassis & Enclosures - Parts Diagram
