Husqvarna Gth2752Tf - Mower Deck & Cutting Deck

Description

Husqvarna Gth2752Tf

Model Year -

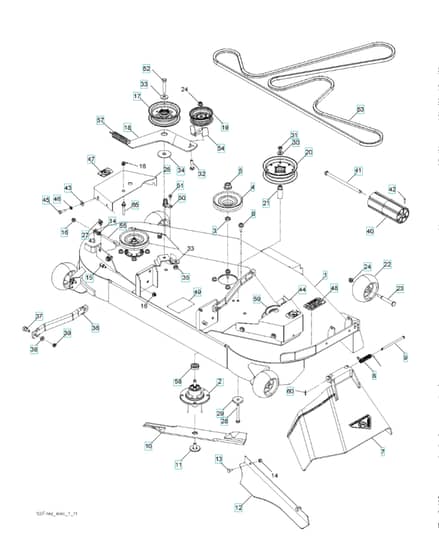

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
4	HV532 17 43-75 Available to backorder	Pulley	£39.58 £32.98
8	HV539 11 07-35 Available to backorder	Spring	£10.36 £8.63
11	HV532 19 30-03 In stock	Screw	£15.85 £13.21
13	HV596 03 94-01 Available to backorder	Bolt	£1.19 £0.99
14	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
15	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
16	HV539 11 28-99 Available to backorder	Nut. 5/16-18. Nyloc	£2.72 £2.27
17	HV532 19 61-04 Available to backorder	Pulley	£112.14 £93.45
19	HV532 17 79-68 Available to backorder	Pulley	£58.94 £49.12
20	HV539 13 27-28 Available to backorder	Pulley	£61.04 £50.87
23	HV596 43 44-04 Available to backorder	Bolt	£5.65 £4.71
28	HV539 10 82-71 Available to backorder	Bolt	£7.92 £6.60
29	HV539 10 65-04 Available to backorder	Washer	£6.46 £5.38
30	HV819 14 16-14 Available to backorder	Washer	£1.08 £0.90
31	HV539 97 69-79 Available to backorder	Nut	£2.98 £2.48
34	HV532 17 85-15 In stock	Washer	Was £8.71 £7.26 Special Price £5.82 £4.85
36	HV532 19 51-85 Available to backorder	Arm	£33.64 £28.03
39	HV539 20 02-82 Available to backorder	Nut	£2.06 £1.72
40	HV532 17 60-66 Available to backorder	Roller	£15.80 £13.17
42	HV532 19 42-08 Available to backorder	Pin	£1.64 £1.37
45	HV874 78 05-16 Available to backorder	Bolt	£3.62 £3.02
50	HV532 41 55-98 In stock	Hose Coupling	£6.08 £5.07
55	HV539 11 55-74 Available to backorder	Eye Bolt	£9.72 £8.10
60	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
